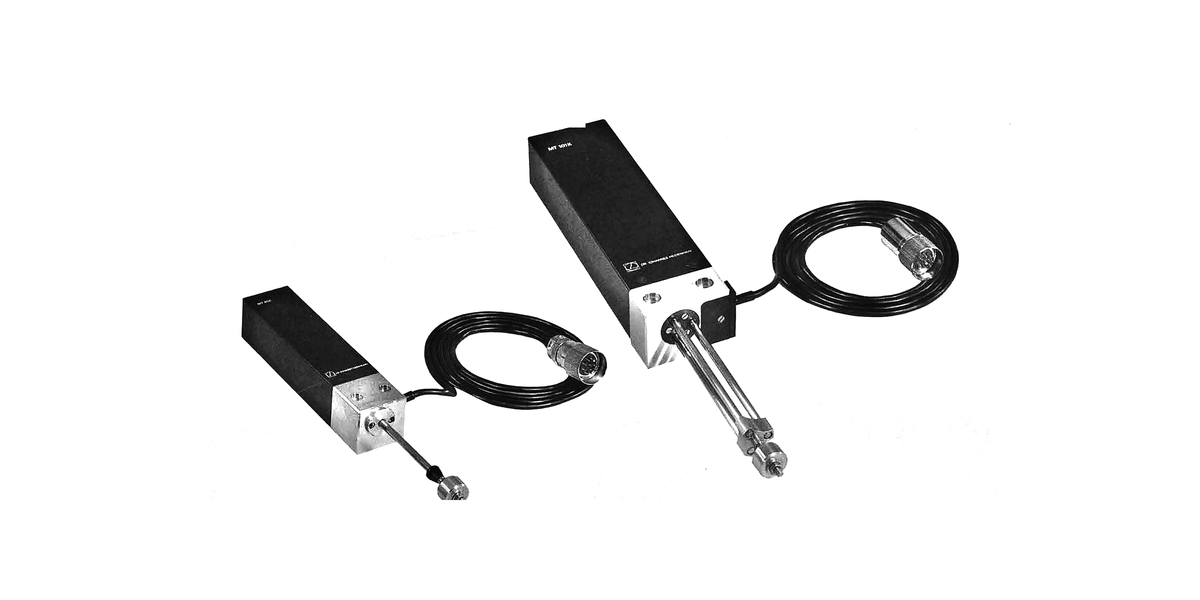

HEIDENHAIN MT 60K / MT 101K Incremental Length Gages
Legacy catalog product. Confirm repair, replacement and availability with AMI for your exact unit.
Confirm the configuration from your unit label.
The HEIDENHAIN MT 60 K and MT 101 K are incremental length gages with a DIADUR glass scale (10 µm grating period) from the HEIDENHAIN METRO program. They work as electronic measuring instruments in laboratories and in automatic measuring devices, cross tables and similar equipment, and the sturdy construction suits assembly lines and production devices. The coupling is rigid in the measuring direction only, and the gages have no compression springs.
If your unit is giving trouble, Automation and Metrology can evaluate it before you commit to a replacement. Send the model and nameplate details so we can confirm the configuration.
Machine down? Call 1-888-354-2525.
Technical data
| Measuring standard | Glass scale with DIADUR grating, 10 µm grating period |
|---|---|
| System accuracy | MT 60 K: ±0.5 µm (±0.00002 in.); MT 101 K: ±1 µm (±0.00004 in.) |
| Recommended measuring steps | 1 µm / 0.5 µm / 0.2 µm / 0.1 µm / 0.05 µm |
| Reference marks | MT 60 K: at mid-point of traverse, alternatively 1.5 mm (0.06 in.) from upper limit stop; MT 101 K: 10 mm (0.4 in.) from upper limit stop |
| Travel | MT 60 K: 60 mm (2.3 in.); MT 101 K: 100 mm (3.9 in.) |
| Plunger guide | Ball-bush guide |
| Operating attitude | Optional |
| Displaced mass | MT 60 K: 50 g (1.8 oz); MT 101 K: 165 g (5.8 oz) |
| Required moving force | MT 60 K: 0.1 to 0.6 N; MT 101 K: 0.5 to 2 N |
| Maximum plunger speed | 250 mm/s (10 in./s) |
| Permissible radial force | MT 60 K: 0.5 N; MT 101 K: 2 N |
| Maximum vibration (50 to 2000 Hz) | 100 m/s² |
| Maximum shock (11 ms) | 1000 m/s² |
| Operating temperature | 0 to 50 °C (32 to 122 °F) |
| Storage temperature | -20 to 70 °C (-4 to 158 °F) |
| Weight | MT 60 K: 700 g (1.5 lb); MT 101 K: 1200 g (2.6 lb) |
| Mounting | MT 60 K: flat surface 38 mm x 34 mm (1.5 in. x 1.3 in.), 2 screws M5; MT 101 K: flat surface 57 mm x 27 mm (2.2 in. x 1.1 in.), 2 screws M8 |
| Connecting cable | 1.5 m (5 ft) to display unit |
| Thread for coupling | M2.5 (6 mm / 0.24 in. deep), ISO/R 463 |
| Light source | MT 60 K: miniature lamp 5 V / 0.6 W; MT 101 K: LED |
| Operating voltage | 5 V ±5 % / 120 mA |
| Incremental output | Two sinusoidal current signals I1 and I2, approximately 7 to 16 µA peak-to-peak with 1 kΩ load |
| Reference signal | One signal I0, approximately 2 to 8 µA (usable portion) |
| Total permissible cable length | 20 m (65.6 ft) |
These are historical catalog values, not a current availability or interchangeability claim. Match the exact model and configuration on your unit.
