Magnetic scales for digital readout systems
Magnescale DRO scales supply the position signal for digital readouts on mills, lathes and grinders. Magnescale states that its magnetic detection is not affected by condensation or oil, which are common on machine tools.
Browse DRO scalesCall 1-888-354-2525

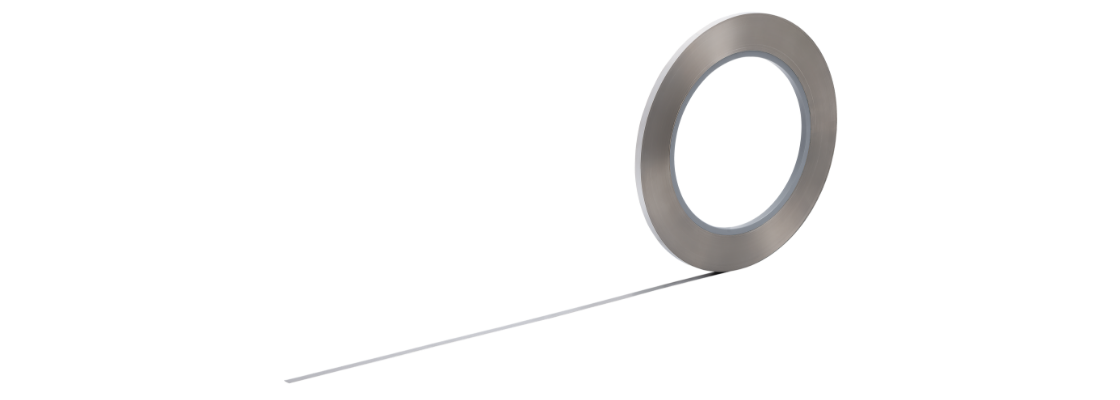

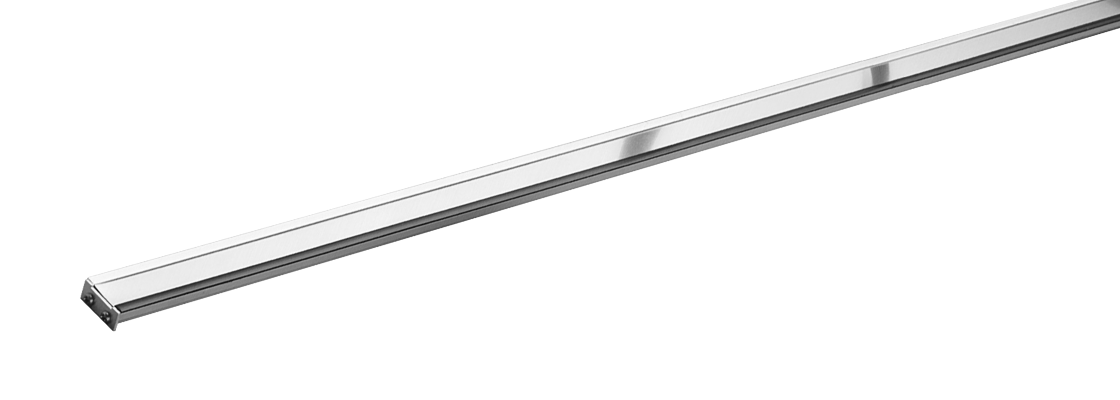

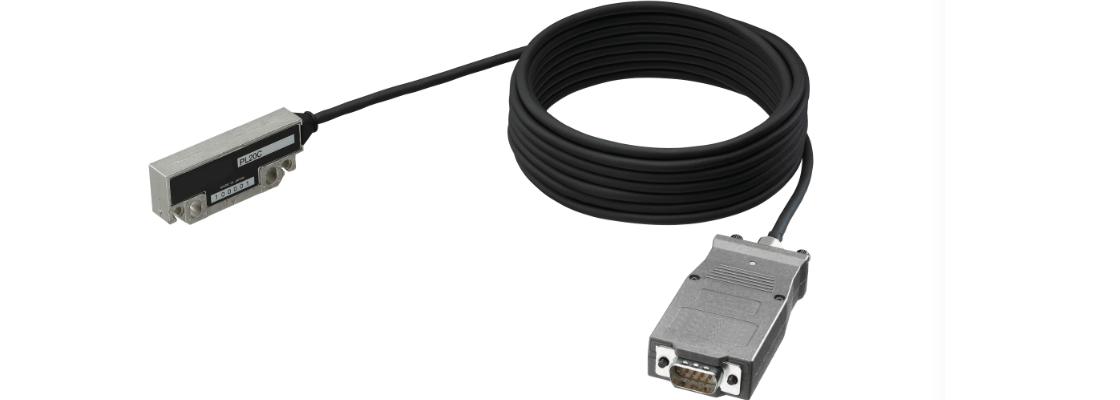

SL110 and SL130Non-contact magnetic scales. SL110 covers 200 to 2,000 mm; SL130 reaches up to 30,000 mm.View →GB-ER (SR138R)Scale for digital readouts, 50 to 2,200 mm, 0.5 micron resolution, A/B quadrature plus Z signal.View →PL20C read headHead cable unit for SL110 and SL130, with cable lengths from 3 to 30 m.View →
How to choose
Measuring lengthSL110 covers 200 to 2,000 mm, GB-ER 50 to 2,200 mm and SL130 200 mm up to 30 m.
ResolutionThe GB-ER scale resolves 0.5 micron. SL110 and SL130 have a maximum resolution of 10 micron.
Read head and interpolatorSL110 and SL130 work with PL20C or PL25 read heads and PL81/PL82 interpolators.
Shop conditionsSL110 and SL130 with the PL20C head are rated IP65. Magnescale lists the PL20C as resistant to oil, dirt, vibration and shock.
Need a Magnescale DRO scale? Include the model, length and interface with your quote request, or call 1-888-354-2525.
