Magnetic linear encoders for machine tool positioning
Magnescale linear encoders measure slide position with a magnetic scale. This range covers absolute and incremental models, enclosed and exposed, for CNC machine tool axes.
Browse Magnescale encodersCall 1-888-354-2525

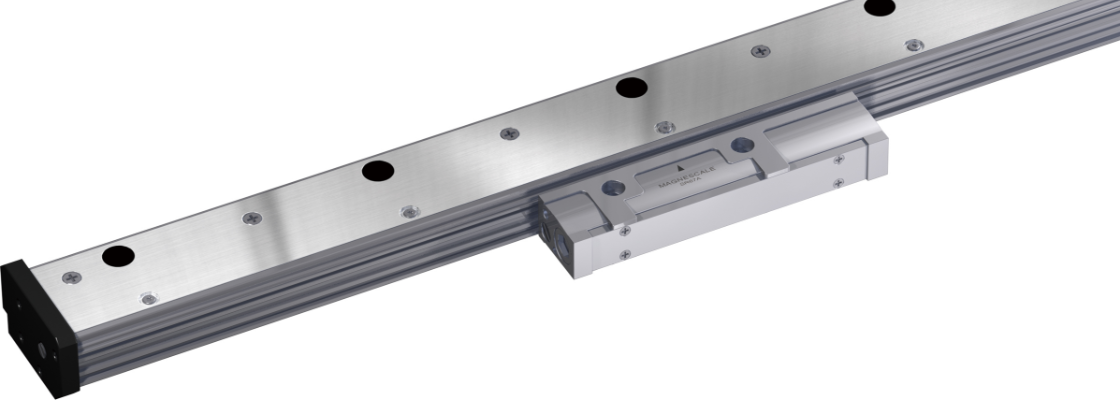

Absolute, enclosedSR67A and SR27A magnetic scales for CNC machine tools.View SR67A →Absolute, exposedSQ47 and SQ57 for long axes, sealed to IP67.View SQ47/SQ57 →Incremental, slimSR24 for tight spaces, A/B quadrature output.View SR24 →
How to choose
Absolute or incrementalAbsolute encoders (SR67A, SR27A, SQ47/57) report position at power-up over a serial protocol. The incremental SR24 outputs A/B quadrature with a reference point.
Control interfaceProtocols include FANUC, Mitsubishi, YASKAWA and SIEMENS; the SQ57 also offers BiSS-C. Tell us your control when you ask for a quote.
Space and lengthSR27A and SR24 are slim for narrow installation spaces (70 to 2,040 mm). SR67A reaches 3,640 mm and SQ47/SQ57 up to 6,270 mm.
Shop conditionsMagnescale states that its magnetic detection is not affected by condensation or oil. The SQ47/SQ57 is IP67 sealed; the SR24 is IP54 (IP65 with air purge).
Need a Magnescale encoder? Include the model, length and interface with your quote request, or call 1-888-354-2525.
