HEIDENHAIN Digital Readouts
The right readout for every manual machine
HEIDENHAIN digital readouts turn encoder signals into clear position values on milling machines, lathes, grinders, drilling and radial drilling machines. A splash-water-resistant front panel and rugged cast-metal housing handle everyday shop-floor conditions.
Browse digital readoutsCall 1-888-354-2525
Milling and drillingFast, reliable positioning on manually operated machines.View readouts for mills →
Turning and grindingReadouts set up for lathes and grinding machines.View readouts for lathes →

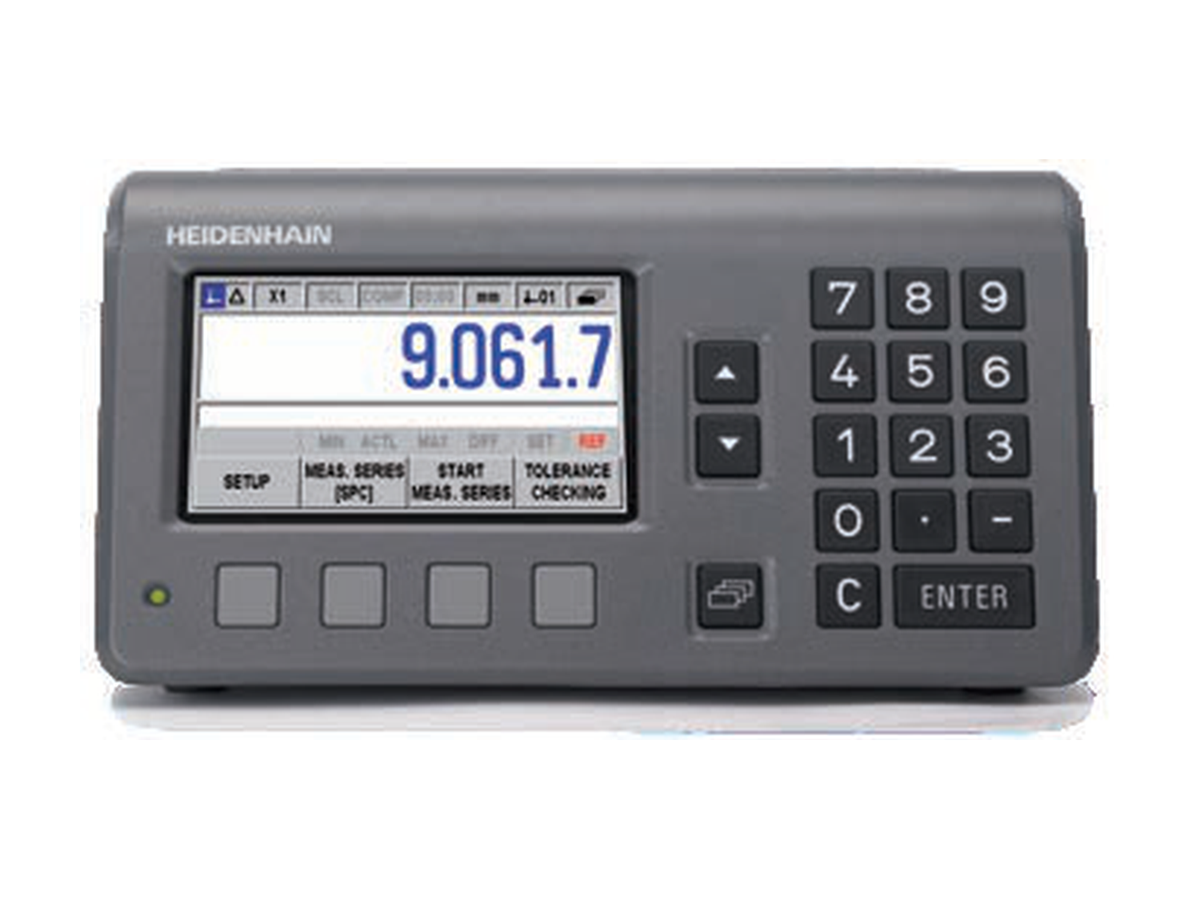

Measuring stationsND 280, ND 287 and GAGE-CHEK 2000 for inspection and length gauges.View evaluation units →
How to choose

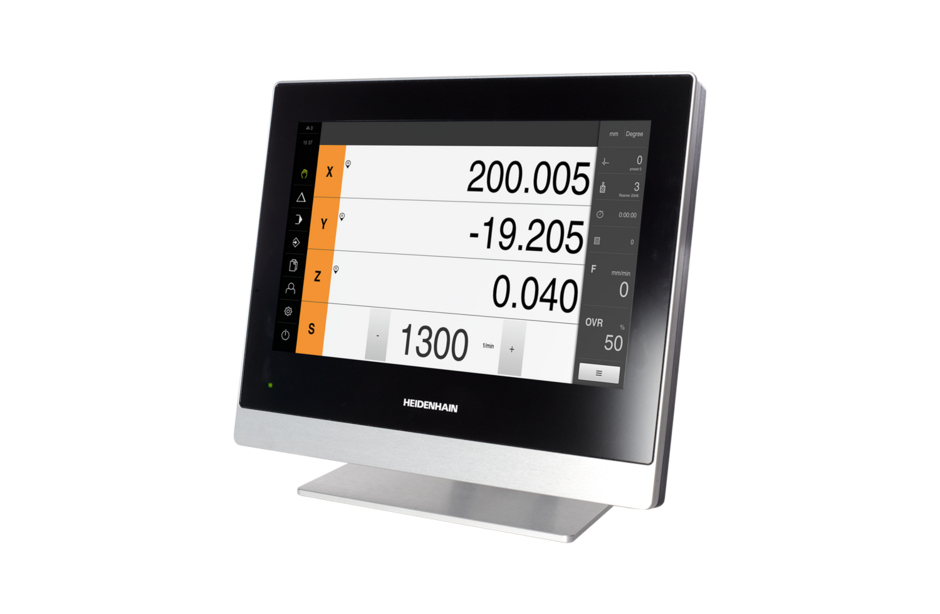

POSITIP 800012-inch touchscreen, up to six axes (1 Vpp, 11 µApp, EnDat 2.2), and up to three NC-controlled axes for simple automated tasks.POSITIP 8000 →

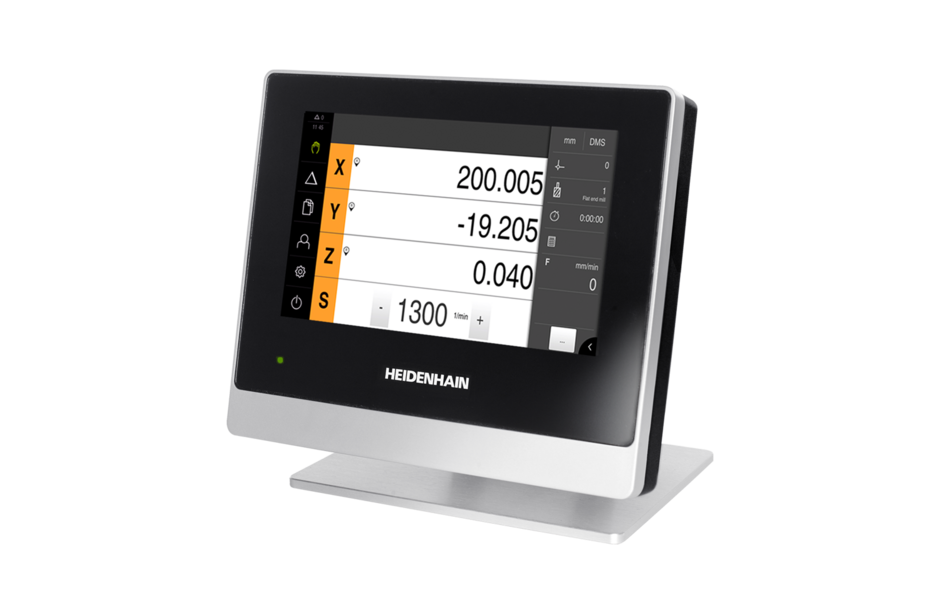

ND 70007-inch touchscreen, three axes (1 Vpp, 11 µApp, EnDat 2.2), and switching functions for simple automated tasks.ND 7000 →

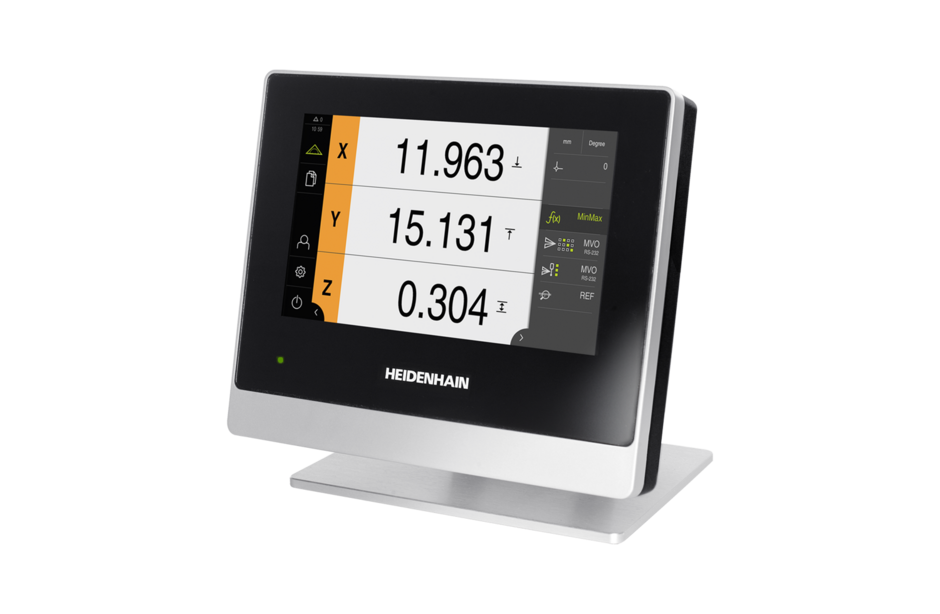

GAGE-CHEK 2000Up to three axes on a 7-inch multitouch screen for measuring fixtures and inspection stations.GAGE-CHEK 2000 →
Upgrading or replacing a readout? Tell us the machine type, number of axes, and your encoders, or call 1-888-354-2525.
Request a quote
