Floating Pitch Rollers


Floating Thread Pitch Rollers


The Floating Thread Pitch Rollers are precision ground and assembled to assure precise functional runout. When ordering reference the part number and thread pitch size Inch or Metric.

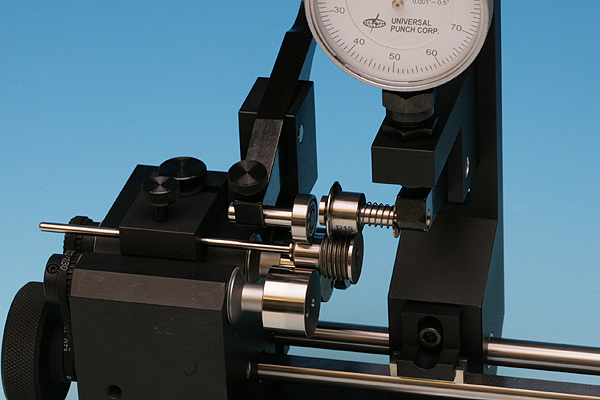

Concentricity Gage Floating Thread Pitch Rollers
Click on the Adobe logo to view the Main Roller dimensions

Floating Thread Pitch Roller Selection


239-00 Pitch Roller
Part Number
Inches
Metric
#239-00
56 to 80
0,35 to 0,75
#240-00
32 to 48
0,5 to 0,8
#241-00
20 to 28
1,0 to 1,25

#242-00

18
1,5
#243-00
16
-
#244-00
14
1,75
#245-00
13
2,0
#246-00
12
-
#247-00
11-1/2
-
#248-00
11
2,5
#249-00
10
-
#250-00
9
3,0
#251-00
8
3,5
#252-00
7
-
#253-00
6
4,0
#254-00
5
-
#255-00
4
-

Selection Chart for Floating Thread Pitch Rollers
