Universal Punch Thread Rollers

Concentricity Thread Rollers

Reverse Lead Thread Rollers

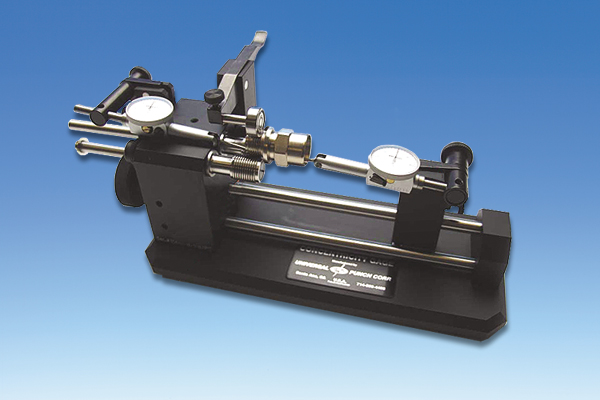

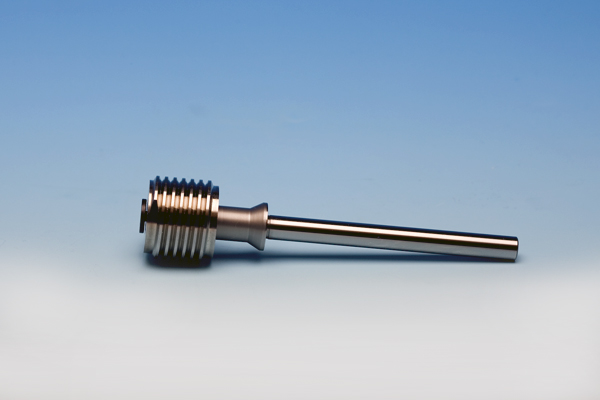

Universal can design and manufacture special Reverse Lead Threaded Rollers for any of its gages. Our engineering and design team will work with you to configure point of datum and measured feature(s) for each unique application. If tight tolerances are a priority, with our experienced machining capabilities we can hold +/-.0000040” / 1µm on bearing surfaces or on all dimensions of the Thread Rollers.

PDF Writer/Reader
Download the easiest software to view, create, modify and print PDF documents. The PDF format as a global exchange document format is created by Adobe and is the most efficient way to exchange information.

Reverse Lead Thread Rollers

-10 Series Size	-20 Series Size	-40 Series Size

Left Hand / Right Hand Lead Thread Rollers

Part Number	Nominal Size	UNC	UNF	UNEF
-	4	40	-	-
-	4	-	48	-
-	5	40	-	-
-	5	-	44	-
-	6	32	-	-
-	6	-	40	-
-	8	32	-	-
-	8	-	36	-
-	10	24	-	-
-	10	-	32	-
-	12	28	-	-
-	12	-	-	32
-	1/4	20	-	-
-	1/4	-	28	-
-	1/4	-	-	32
-	5/16	18	-	-
-	5/16	-	24	-
-	5/16	-	-	32
-	3/8	16	-	-
-	3/8	-	24	-
-	3/8	-	-	32
-	7/16	14	-	-
-	7/16	-	20	-
-	7/16	-	-	28
-	1/2	13	-	-
-	1/2	-	20	-
-	1/2	-	-	28
-	9/16	12	-	-
-	9/16	-	18	-
-	9/16	-	-	24
-	5/8	11	-	-
-	5/8	-	18	-
-	5/8	-	-	24
-	11/16	-	-	24
-	3/4	10	-	-
-	3/4	-	16	-
-	3/4	-	-	20
-	13/16	-	-	20
-	7/8	9	-	-
-	7/8	-	14	-
-	7/8	-	-	20
-	15/16	-	-	20
-	1	8	-	-
-	1	-	12	-
-	1	-	14	-
-	1	-	-	20
-	1-1/16	-	-	18
-	1-1/8	7	-	-
-	1-1/8	-	12	-
-	1-1/8	-	-	18
-	1-3/16	-	-	18
-	1-1/4	7	-	-
-	1-1/4	-	12	-
-	1-1/4	-	-	18
-	1-5/16	-	-	18
-	1-3/8	6	-	-
-	1-3/8	-	12	-
-	1-3/8	-	-	18
-	1-7/16	-	-	18
-	1-1/2	6	-	-
-	1-1/2	-	12	-
-	1-1/2	-	-	18

Part Number	Nominal Size	Fine	Cores	SP
-	M2.0	.40	-	-
-	M2.2	.45	-	-
-	M2.5	.45	-	-
-	M3.0	.50	-	-
-	M3.5	.70	-	-
-	M4.0	.70	-	-
-	M4.5	.75	-	-
-	M5.0	.80	-	-
-	M6.0	1.0	-	-
-	M7.0	1.0	-	-
-	M8.0	1.0	-	-
-	M8.0	-	1.25	-
-	M10	1.50	-	-
-	M10	-	1.25	-
-	M12	1.75	-	-
-	M12	-	1.50	-
-	M12	-	-	1.25
-	M14	2.0	-	-
-	M14	-	1.50	-
-	M16	2.0	-	-
-	M16	-	1.50	-
-	M17	1.0	-	-
-	M18	2.50	-	-
-	M18	-	1.50	-
-	M20	2.50	-	-
-	M20	-	1.50	-
-	M22	2.50	-	-
-	M22	-	1.50	-
-	M24	3.0	-	-
-	M24	-	2.0	-
-	M27	3.0	-	-
-	M27	-	2.0	-
-	M30	3.5	-	-
-	M30	-	2.0	-
-	M33	3.5	-	-
-	M33	-	2.0	-
-	M36	4.0	-	-
-	M36	-	3.0	-
