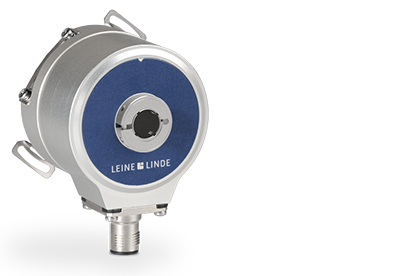

The Leine & Linde Incremental 600 is an inductive incremental encoder in the 600 series. It uses inductive scanning, so the signal stays stable in dust, moisture, vibration, and magnetic or electrical interference. It is built for places like sawmills and food processing plants, where contamination and mechanical stress come with the job.
It shares the 58 mm housing, larger bearings, and mounting design of the 600 absolute series, so absolute and incremental models fit the same mechanics. You can choose solid shaft, hollow shaft, or bearingless versions. HTL, TTL and RS-422 interfaces are available. Stainless steel housings are an option, and bearingless versions reach IP69/IPx9K for wash-down areas.
- Diameter: 58 mm
- Vibration: up to 200 m/s²
- Shaft load: 140 N radial, 100 N axial
- Protection: IP66 / IP67; IP69/IPx9K bearingless
- Interfaces: HTL, TTL, RS-422
Values vary by model. To get a quote, send us the part number, shaft type and interface you need.
