Connect encoder signals to your control or measurement system
Signal converters adapt encoder interfaces. Interface boxes acquire position values for measurement systems. Match the input signal, output interface, supply and connector before choosing a model.
Browse interface productsCall 1-888-354-2525

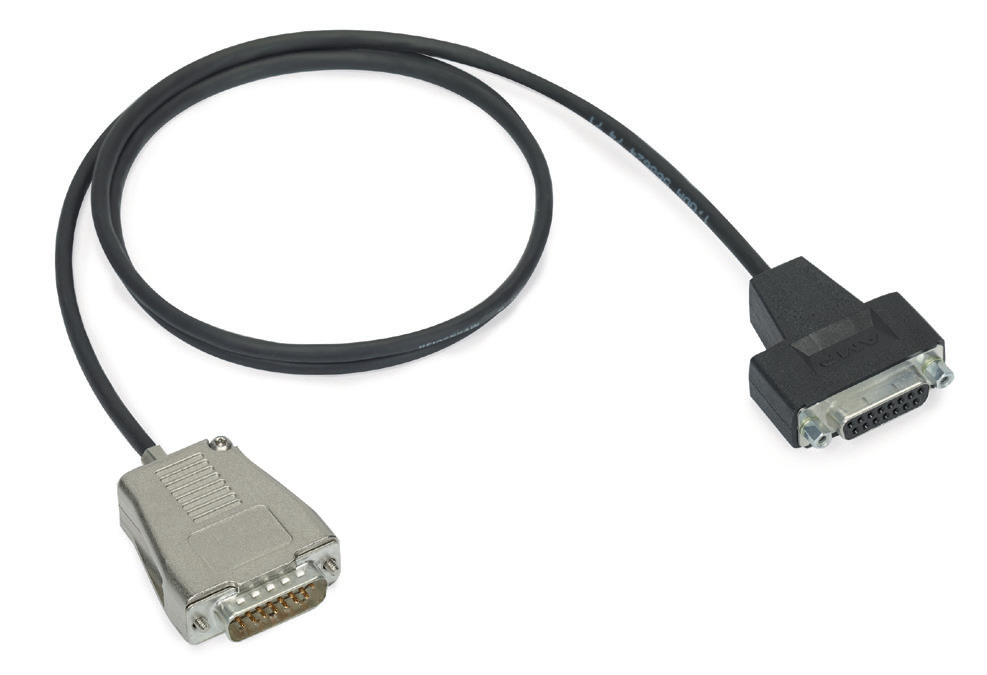

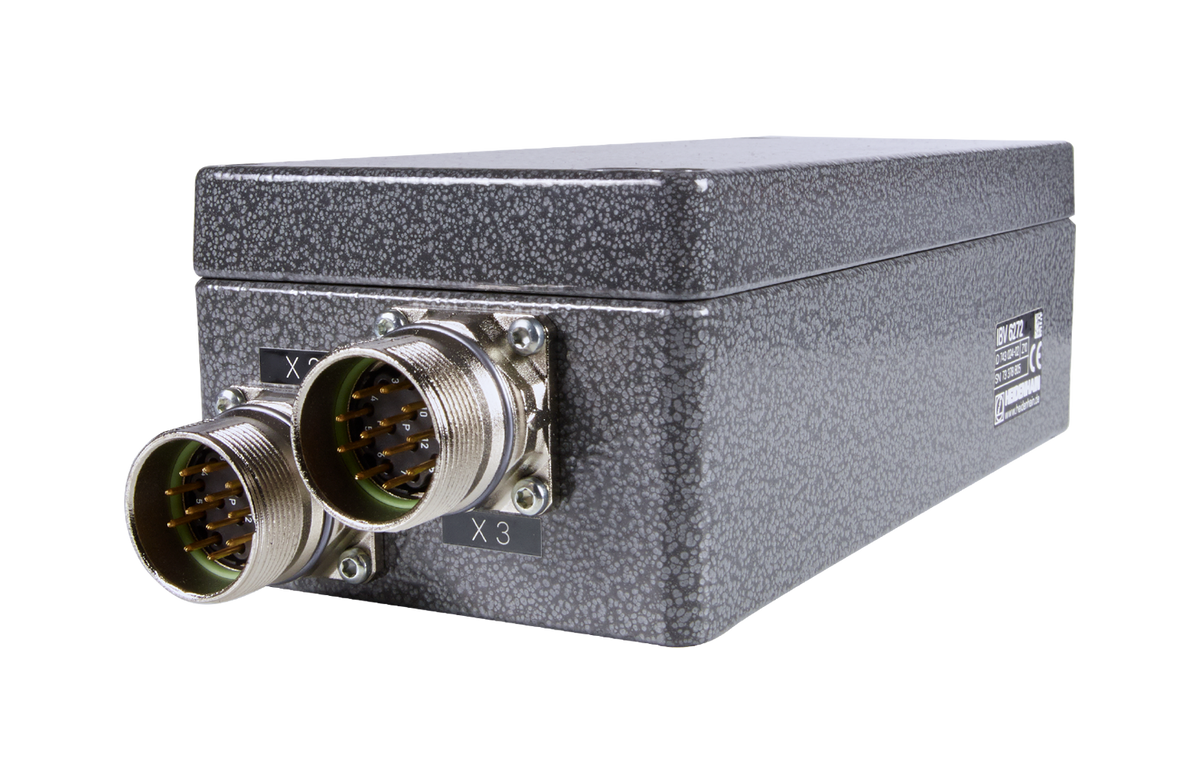

Signal conversionIBV and EXE models adapt incremental encoder signals.View signal converters →Control interface adaptationEIB 2391S connects EnDat 2.2 to DRIVE-CLiQ.View EIB 2391S →Computer-aided measurementEIB 741 and EIB 742 transfer measured values over Ethernet.View EIB 700 series →
How to choose
Encoder input and downstream outputConfirm the exact encoder signal and the interface required by the control. Models within a converter family are not automatically interchangeable.
Acquisition and data transferFor PC measurement, check the number of encoder inputs, supported interfaces, trigger requirements and power supply.
Machine and drive compatibilitySend the encoder ID and drive/control model. Safety-related use needs confirmation of the complete approved configuration.
Interpolation and connectionsCheck interpolation, signal timing, connector pinout, cable length and supply voltage against the exact converter version.
Replacing an interface product? Send the converter and encoder ID numbers, controller model and connector photos, or call 1-888-354-2525.
