ACU-RITE DRO102 2-Axis Lathe DRO Package
The complete digital readout package for your lathe. This package replaces the dials on your lathe with the ACU-RITE DRO102 readout and its 7-inch color display, showing both axes at once so you can position accurately without counting dial revolutions.
Key specifications
| Readout | ACU-RITE DRO102 - 7-inch TFT color display, 2 axes, splash-proof keypad |
| Scales | Two SENC 150 precision glass scales |
| Resolution | 0.5 / 1 / 5 micron options (0.00002 / 0.00004 / 0.0002 inch) |
| Accuracy | ±3 or ±5 micron per 1000 mm |
| Measuring lengths | 50 - 3075 mm (2 - 120 inch) |
| Scale rating | IP53 protected |

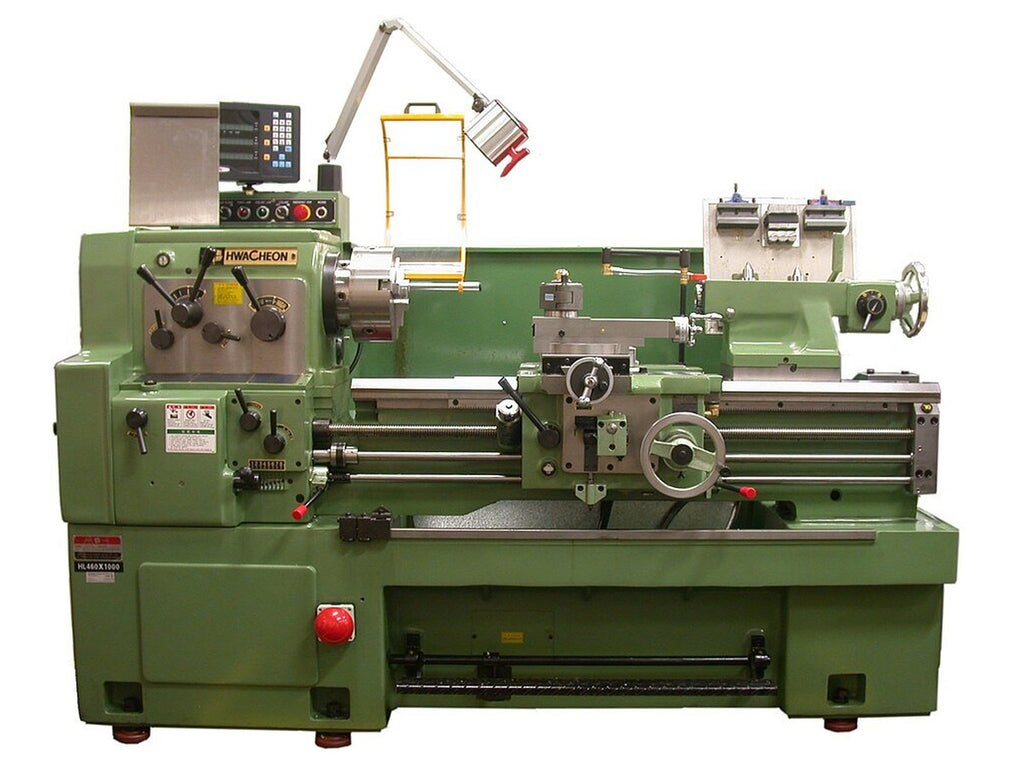

Which machines it fits
2-axis lathes (engine lathes and toolroom lathes). One scale mounts along the Z axis (carriage travel along the bed) and one along the X axis (cross-slide travel). Scale lengths are matched to your machine at order.

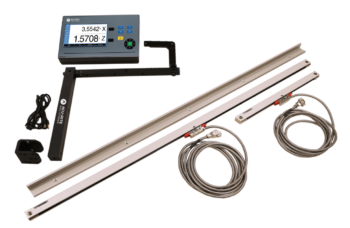

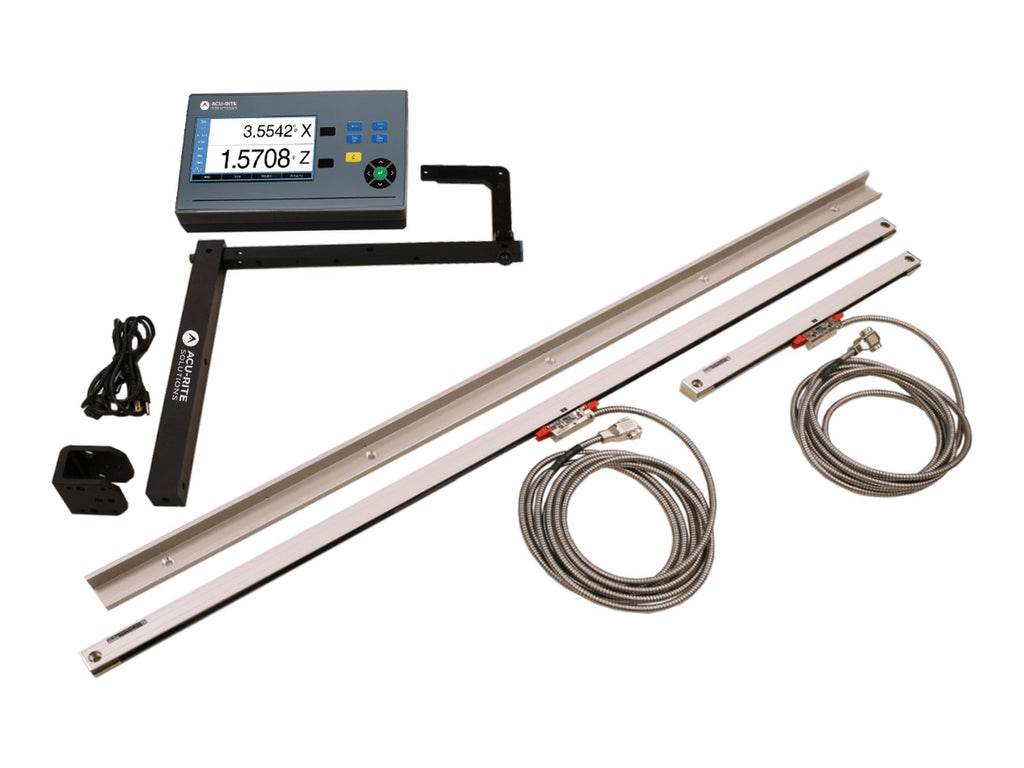

What is in the kit
- ACU-RITE DRO102 digital readout with 7-inch color display
- Two SENC 150 precision glass scales sized to your machine travel
- Readout mounting arm, scale brackets and mounting hardware
- All connection cables
What the DRO102 does for you
- Straightforward 2-axis positioning
- Instant radius/diameter conversion
- Absolute and incremental display
DRO102 or DRO203? The DRO102 covers straightforward 2-axis positioning with the same precision scales and 7-inch color display. The DRO203 adds the taper calculator, lock-axis tool offsets and Dynamic Zoom.
Select your table/travel size above. Pricing and lead times on request - call 1-888-354-2525.
How to measure your machine for scales
Move the carriage fully in one direction, mark the bed, then move it fully the other way. Measure between the marks - that distance is your travel.
On a lathe, Z is the carriage travel along the bed and X is the cross-slide travel in-and-out. Measure both axes.
Choose the kit whose scale travel is the same as or longer than your measured travel. We match scale lengths to your machine at order.
Allow about 3.5 inches beyond the travel for the scale body (SENC 150 adds a 1.75 inch overrun at each end), plus clearance for the reading head and cable.
Scales 24 inches and longer mount with a mid-point support; 66 inches and longer include a back-up spar. Not sure? Send us your machine model and bed length and we will match the kit - 1-888-354-2525.
