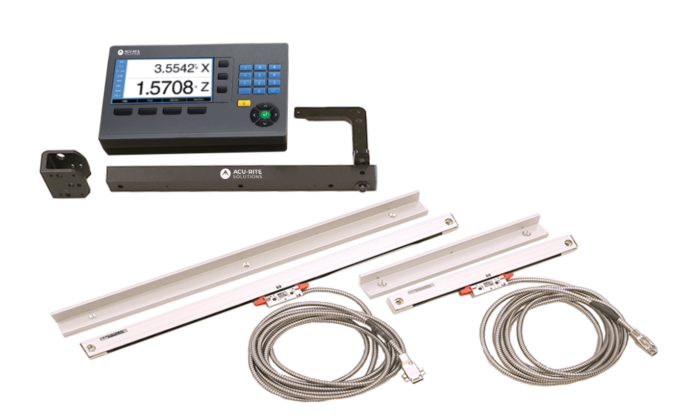

ACU-RITE DRO203 2-Axis Grinding DRO Package
The complete digital readout package for your surface grinder. This package pairs the 3-axis ACU-RITE DRO203 readout and its 7-inch color display with two high-resolution scales, so you can position accurately without counting dial revolutions.
Key specifications
| Readout | ACU-RITE DRO203 - 7-inch TFT color display, up to 3 axes, splash-proof keypad |
| Scales | Two SENC 150 precision glass scales |
| Resolution | 0.5 / 1 / 5 micron options (0.00002 / 0.00004 / 0.0002 inch) |
| Accuracy | ±3 or ±5 micron per 1000 mm |
| Measuring lengths | 50 - 3075 mm (2 - 120 inch) |
| Scale rating | IP53 protected |

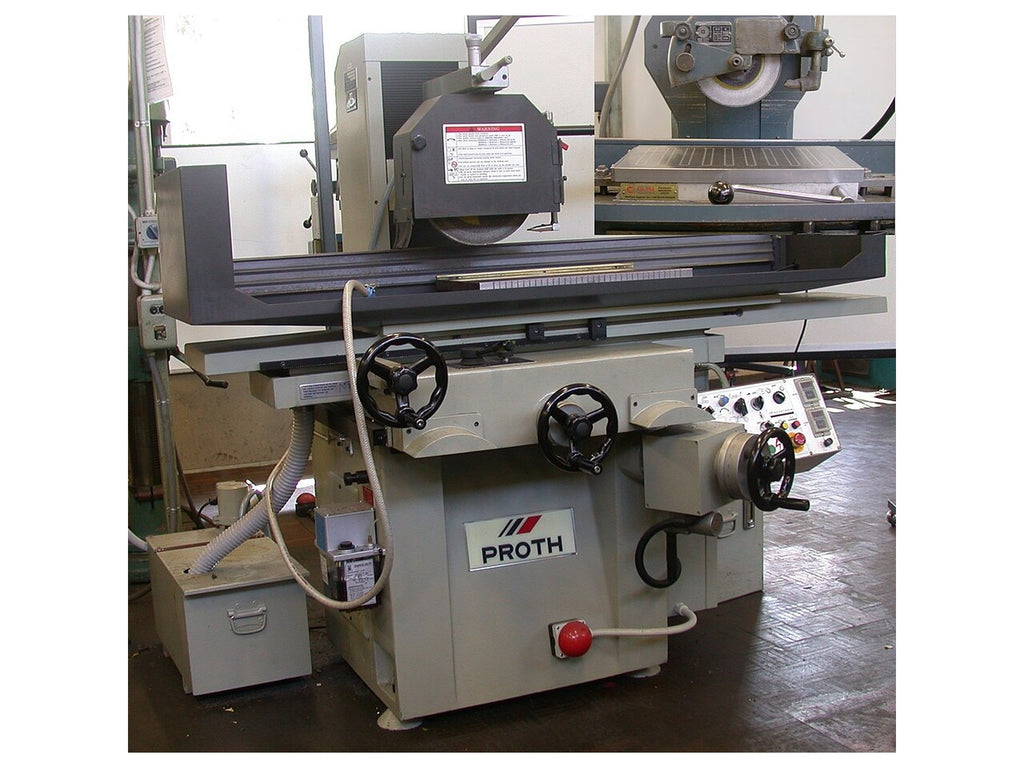

Which machines it fits
2-axis surface grinders. One scale mounts along the X axis (table travel) and one along the Y axis (crossfeed travel). Choose the kit size that matches your table and crossfeed travel; scale lengths are matched to your machine at order.

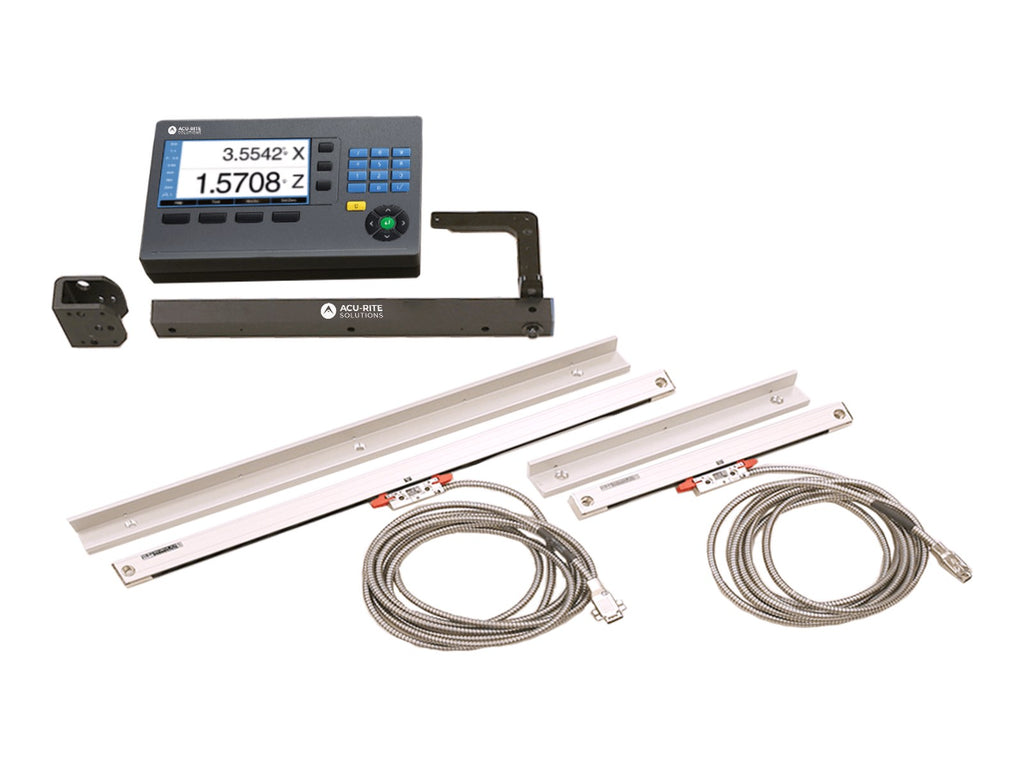

What is in the kit
- ACU-RITE DRO203 digital readout (3-axis) with 7-inch color display
- Two SENC 150 precision glass scales sized to your machine travel (.00004 inch / 1 micron resolution)
- Readout mounting arm, scale brackets and mounting hardware
- All connection cables

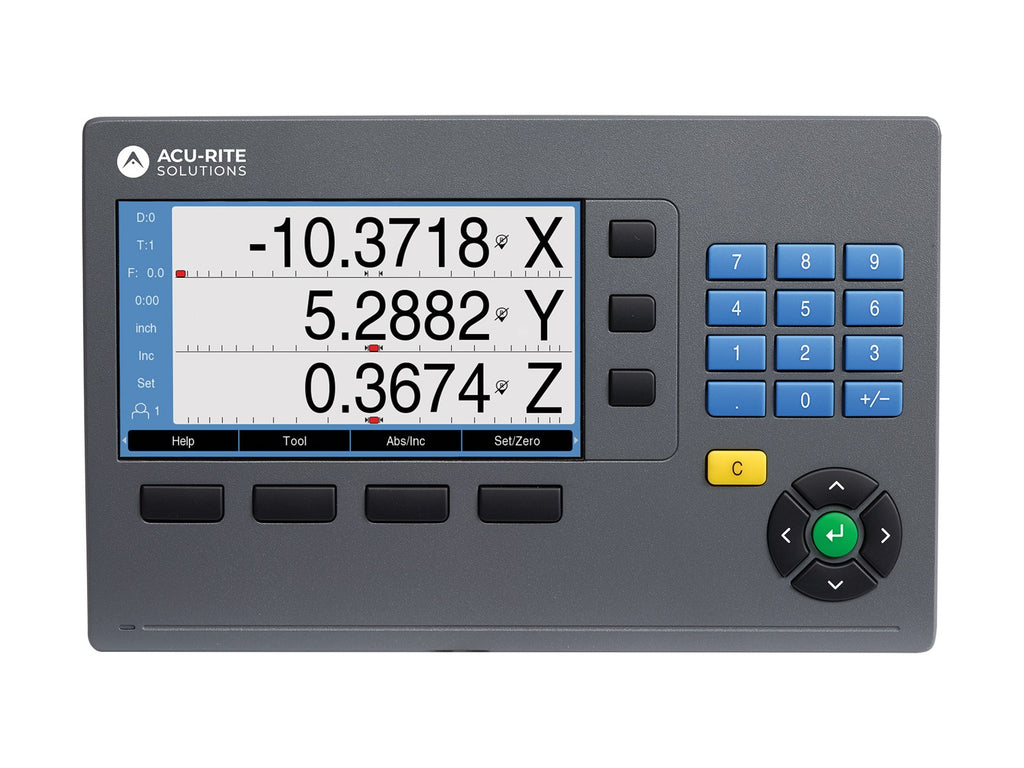

What the DRO203 does for you
- High-resolution 1 micron scales for fine grinding work
- Instant radius/diameter conversion
- Absolute and incremental display
Select your table/travel size above. Pricing and lead times on request - call 1-888-354-2525.
