Anilam Wizard 1000 Digital Readout

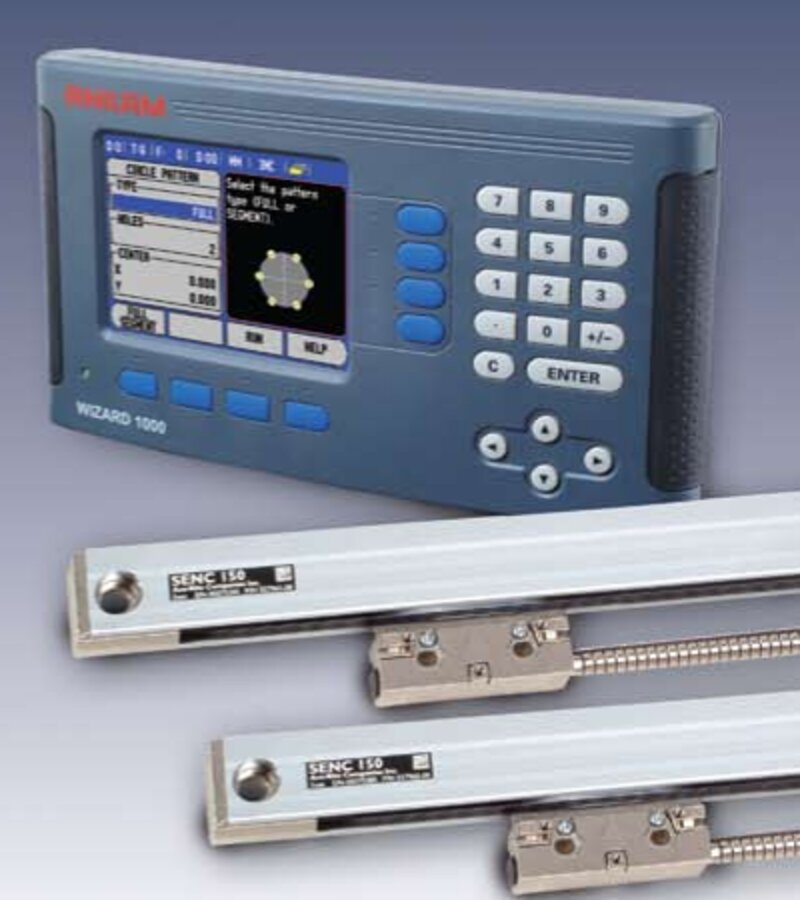

Photo from the Wizard 1000 brochure, shown with SENC 150 scales. Check your unit's label for its exact configuration.
The Anilam Wizard 1000 (W1000) is an older programmable digital readout with a color LCD, for milling and turning. If yours is giving trouble, Automation and Metrology can evaluate it for repair or help you find a suitable replacement. Listing here is not a stock or current-production claim.
Key specifications (from the Wizard 1000 brochure, P.N. 73000-237 Rev. 5/08)
- Display: 5.7 in. transmissive color LCD; 2, 3 or 4 axes
- Functions: multiple program names with numerous steps, two display views, job clock, feed-rate display, skew compensation, tool offsets (16), preset and zero reset, calculator, inch/mm conversion, help function
- Milling: bolthole and linear pattern calculations with graphics, centerline calculation, edge finder/touch probe input
- Turning: lock axis, radius/diameter conversion, taper calculator
- Error compensation: linear and non-linear, up to +/-9,999 ppm
- Interface: RS-232-C/V.24 serial port
- Power: 100 to 240 Vac, 50/60 Hz (+/-3 Hz), 30 VA max
- Operating temperature: 0 to 45 °C; storage -20 to 70 °C; weight 4.85 lb; die-cast metal housing
Manual: Anilam Wizard 1000 Reference Manual (PDF, 70 pages). Published by Acu-Rite Companies Inc., 532851-21 Ver 00, 5/07.
we specialize in machine down readout repair or replacement
Send us the full model and the ID number from the unit's label, plus the encoders it connects to, so we can check the right configuration. Do not assume a similar model is a drop-in replacement. Pricing and lead times on request. Use Request a Quote.
