Anilam Wizard 411 Digital Readout

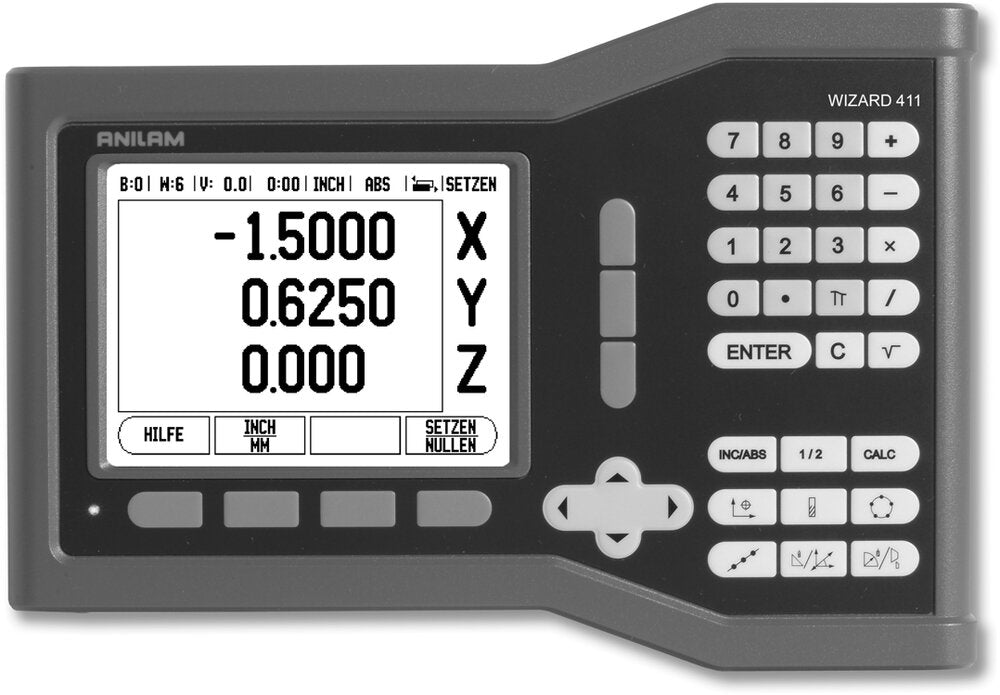

Front panel from the W411 manual (German-language screen shown). Check your unit's label for its exact configuration.
The Anilam Wizard 411 (W411) is an older digital readout for manual milling and turning machines. If yours is giving trouble, Automation and Metrology can evaluate it for repair or help you find a suitable replacement. Listing here is not a stock or current-production claim.
Key specifications (from the W411 Operating Manual)
- Applications: manual milling and turning
- Functions described: tool table (up to 16 tools), absolute/incremental display, set/zero, job clock, feed-rate display, bolthole circle and linear patterns (milling)
- Encoder setup: selectable scale resolution (10, 5, 2, 1, 0.5 µm), count direction
- Power: 100 to 240 V~, 50/60 Hz (±3 Hz), 25 VA max. Fuse 500 mA/250 V, 5 x 20 mm, Slo-Blo
- Protection: IP 40 rear housing, IP 54 front panel
- Operating temperature: 0 to 45 °C; storage -20 to 70 °C; weight 2.6 kg
Manual: Anilam Wizard 411 Operating Manual, German (PDF, 52 pages). Published by Acu-Rite Companies Inc., 606088-10 Ver 00, 10/07. An English edition is not on file yet.
we specialize in machine down readout repair or replacement
Send us the full model and the ID number from the unit's label, plus the encoders it connects to, so we can check the right configuration. Do not assume a similar model is a drop-in replacement. Pricing and lead times on request. Use Request a Quote.
Request a Quote Or call 1-888-354-2525.
