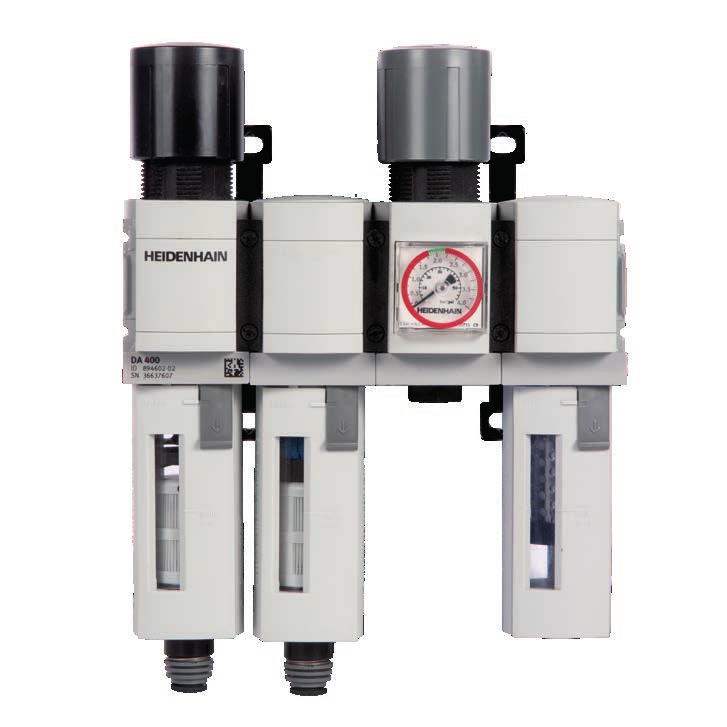

HEIDENHAIN DA 400 Compressed-Air Filter System
Clean sealing air helps protect HEIDENHAIN sealed linear and angle encoders from contamination. The DA 400 cleans and regulates compressed air before it enters the encoder. Request a quote for the DA 400 and specify the number and type of encoders and any tubing or connecting pieces needed.
Key specifications
- Three filter stages: prefilter, fine filter and activated carbon filter
- Pressure regulator with pressure gauge
- Supports up to 10 connected linear, angle or rotary encoders
- Maximum flow rate: 360 l/min
- Operating temperature: 5 °C to 30 °C
- Accessories such as connecting pieces and pressure switch are selected separately
HEIDENHAIN DA 400 product information (PDF)
Pricing and lead time on request. Use Request a Quote and include the encoder models and air-supply requirements.
