HEIDENHAIN LB 382C Linear Encoder

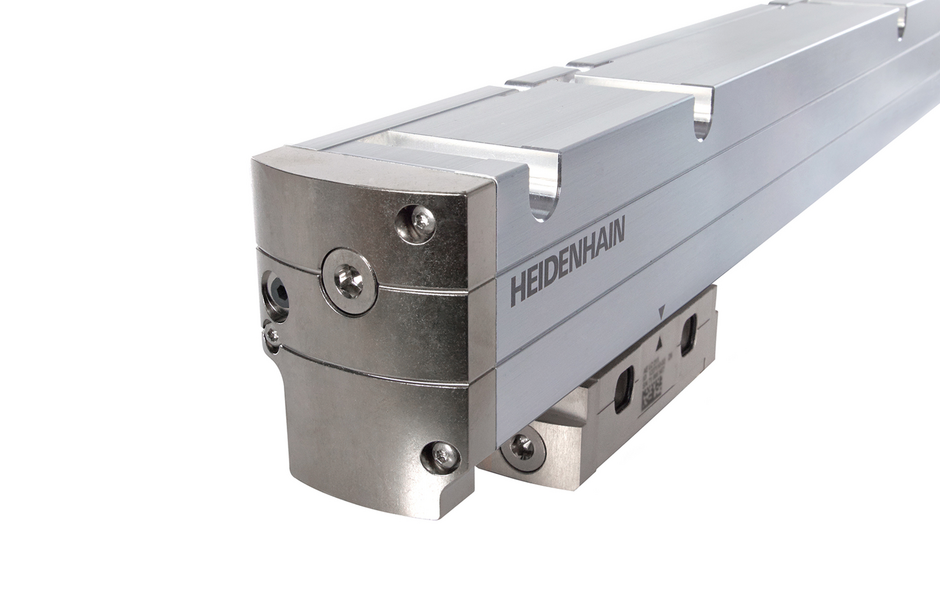

Representative HEIDENHAIN LB-series linear encoder pictured; not the exact LB 382C model. Check your unit's ID tag for its configuration.
The HEIDENHAIN LB 382C (also written LB382C) is a linear encoder. If yours is giving trouble, Automation and Metrology can evaluate it before you commit to a replacement. We work on older encoders, including units that may no longer be available new.
we specialize in machine down linear encoder repair or replacement
How it works: Send us your scale for a free evaluation. We will give you a repair quote quickly, before work starts.
Turnaround: Rush repairs typically take 1-2 days; standard repairs typically take 1-2 weeks. We will confirm the timing for your unit with the quote. If repair is not practical, we can help identify a suitable current HEIDENHAIN replacement.
Catalog specifications
From the HEIDENHAIN Linear Encoders for Numerically Controlled Machine Tools catalog, July 2010. Printed on catalog pages 33 and 35, which cover both the LB 382 and LB 382 C; the reference mark row below is the difference between them. This page lists the LB 382 C entries. Values are catalog values for this model; confirm your unit's configuration from its ID tag.
| Measuring standard | Stainless steel tape with AURODUR graduation |
|---|---|
| Accuracy grade | ±5 µm |
| Reference marks | Distance-coded (LB 382 C) |
| Measuring length, up to 3040 mm (single-section housing) | 440, 640, 840, 1040, 1240, 1440, 1640, 1840, 2040, 2240, 2440, 2640, 2840, 3040 mm; expansion coefficient 10 x 10-6 K-1 |
| Measuring length, from 3240 mm | Kit with single-section AURODUR steel tape and housing sections (1000 to 2000 mm), for 3240 mm to 30 040 mm in 200 mm steps; expansion coefficient same as machine main casting |
| Incremental signals | About 1 VPP |
| Grating period / signal period | 40 µm / 40 µm |
| Cutoff frequency (–3 dB) | At least 250 kHz |
| Traversing speed | Up to 120 m/min |
| Power supply (without load) | 5 V ± 5 % / less than 150 mA |
| Electrical connection | Separate adapter cable (1 m/3 m/6 m/9 m) connectable to mounting block |
| Cable length (HEIDENHAIN cable) | Up to 150 m |
| Required moving force | Up to 15 N |
| Vibration 55 to 2000 Hz | Up to 300 m/s² (IEC 60 068-2-6) |
| Shock (11 ms) | Up to 300 m/s² (IEC 60 068-2-27) |
| Acceleration | Up to 60 m/s² in measuring direction |
| Operating temperature | 0 °C to 50 °C |
| Protection (IEC 60 529) | IP 53 when mounted according to the mounting instructions; IP 64 if compressed air is connected via DA 300 |
| Weight | 1.3 kg + 3.6 kg/m measuring length |
Please send the full model and ID number from the unit's label, plus its measuring length and connector details, so we can check the right configuration. Do not assume a similar model is a drop-in replacement.
