HEIDENHAIN LC 193M Linear Encoder

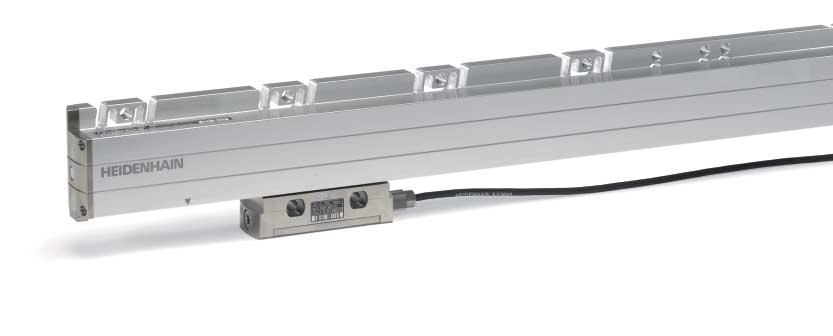

HEIDENHAIN LC 100 series (LC 183, LC 193). Catalog photo of the series, not of an LC 193M unit specifically.
The HEIDENHAIN LC 193M (also written LC193M) is a linear encoder. If yours is giving trouble, Automation and Metrology can evaluate it before you commit to a replacement. We work on older encoders, including units that may no longer be available new.
we specialize in machine down linear encoder repair or replacement
How it works: Send us your scale for a free evaluation. We will give you a repair quote quickly, before work starts.
Turnaround: Rush repairs typically take 1-2 days; standard repairs typically take 1-2 weeks. We will confirm the timing for your unit with the quote. If repair is not practical, we can help identify a suitable current HEIDENHAIN replacement.
Catalog specifications
From the HEIDENHAIN Linear Encoders for Numerically Controlled Machine Tools catalog, July 2010. Printed in the 2010 catalog on the same page as the LC 183 and LC 193F. This page lists the LC 193M column only. Values are catalog values for this model; confirm your unit's configuration from its ID tag.
| Absolute position values | Mitsubishi high speed serial interface, Mit 02-4 or Mitsu 01 |
|---|---|
| Resolution | 0.01 µm (accuracy ±3 µm); 0.05 µm (accuracy ±5 µm) |
| Incremental signals | None (–) |
| Cable length (HEIDENHAIN cable) | Up to 20 m |
| Accuracy grade | ±3 µm (up to measuring length 3040 mm); ±5 µm |
| Measuring lengths (mm) | 140, 240, 340, 440, 540, 640, 740, 840, 940, 1040, 1140, 1240, 1340, 1440, 1540, 1640, 1740, 1840, 2040, 2240, 2440, 2640, 2840, 3040, 3240, 3440, 3640, 3840, 4040, 4240 |
| Expansion coefficient | 8 x 10-6 K-1 |
| Required moving force | Up to 4 N |
| Vibration 55 to 2000 Hz | Up to 200 m/s² (IEC 60 068-2-6) |
| Operating temperature | 0 °C to 50 °C (from measuring length 3240 mm, storage temperature is restricted to –10 °C to +50 °C) |
| Weight | 0.4 kg + 3.3 kg/m measuring length |
| Measuring standard | DIADUR glass scale with absolute track and incremental track |
| Grating period | 20 µm |
| Power supply (without load) | 3.6 to 5.25 V / less than 300 mA |
| Electrical connection | Separate adapter cable (1 m/3 m/6 m/9 m) connectable to either side of mounting block |
| Traversing speed | Up to 180 m/min |
| Acceleration | Up to 100 m/s² in measuring direction |
| Shock (11 ms) | Up to 300 m/s² (IEC 60 068-2-27) |
| Protection (IEC 60 529) | IP 53 when mounted according to the mounting instructions; IP 64 if compressed air is connected via DA 300 |
Documents
- HEIDENHAIN spec sheet, LC 183 / LC 193F / LC 193M (PDF)
- HEIDENHAIN linear encoders catalog, 2010 (PDF)
Please send the full model and ID number from the unit's label, plus its measuring length and connector details, so we can check the right configuration. Do not assume a similar model is a drop-in replacement.
