HEIDENHAIN LIDA 190 Exposed Linear Encoder
Legacy catalog product. Confirm repair, replacement and availability with AMI for your exact unit.
Confirm the configuration from your unit label.

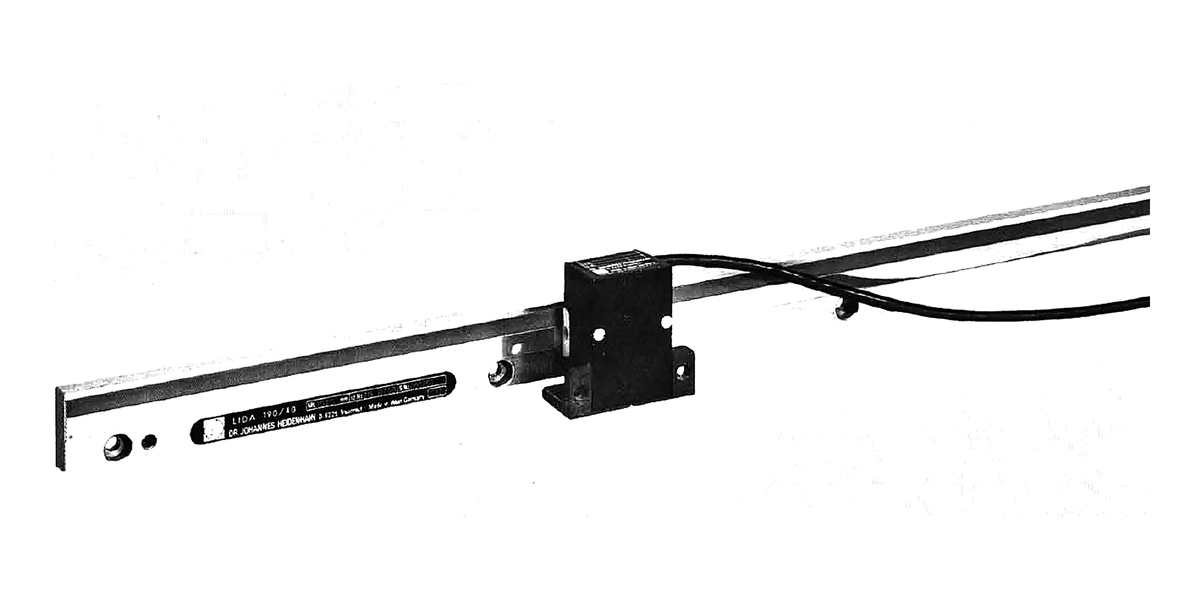

The HEIDENHAIN LIDA 190 is an incremental exposed linear encoder (reflected light) with an AURODUR steel scale tape, 40 µm grating period, reference mark position as required, and measuring lengths up to 2040 mm.
If your unit is giving trouble, Automation and Metrology can evaluate it before you commit to a replacement. Send the model and nameplate details so we can confirm the configuration.
Machine down? Call 1-888-354-2525.
Technical data
| Measuring standard | Steel tape scale with AURODUR grating |
|---|---|
| Grating period | 40 µm |
| Recommended measuring step | 1 µm |
| Accuracy grades | ±5 µm or ±3 µm |
| Reference marks | One at any desired location |
| Measuring lengths | 220, 270, 320, 370, 420, 470, 520, 620, 720, 770, 820, 920, 1020, 1240, 1440, 1640, 1840 or 2040 mm |
| Maximum traversing speed | Depends on subsequent electronics |
| Maximum vibration (50 to 2000 Hz) | 100 m/s² |
| Maximum shock (11 ms) | 500 m/s² |
| Operating temperature | 0 to 50 °C |
| Storage temperature | -20 to 70 °C |
| Weight | Scanning head 50 g; scale approx. 1.6 kg/m |
| Connecting cable | 3 m with connector (standard); 0.3 m with connector on mounting block (special type); 1 m without connector (special type) |
| Light source | LED |
| Operating voltage | 5 V ±5% |
| Catalog current draw | 120 mA |
| Incremental output | Two sinusoidal current signals I1 and I2, approximately 7 to 16 µA peak-to-peak with 1 kΩ load |
| Reference signal | One signal I0, approximately 2 to 8 µA (usable portion) |
| Total permissible cable length | 20 m |
These are historical catalog values, not a current availability or interchangeability claim. Match the exact model and configuration on your unit.
Pricing and lead times on request. Use Add to Quote and include the nameplate ID and configuration.
Documents
HEIDENHAIN LIDA 190 catalog specifications with AMI stamp, November 1988, pp.38-39 (PDF)
