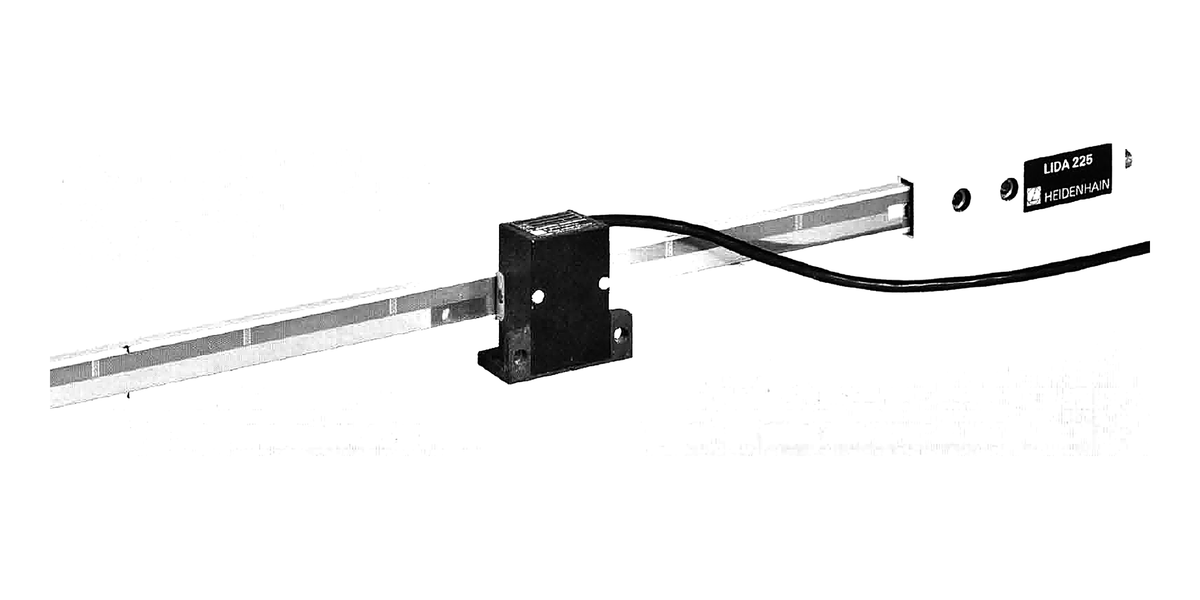

HEIDENHAIN LIDA 225 Exposed Linear Encoder for Large Traverses
Legacy catalog product. Confirm repair, replacement and availability with AMI for your exact unit.
Confirm the configuration from your unit label.
The HEIDENHAIN LIDA 225 is an incremental exposed linear encoder (reflected light) with an AURODUR steel scale tape for large traverses, 100 µm grating period, and measuring lengths up to 30 m. Reference marks every 50 mm are possible, activated by selector magnets, with linear machine error compensation by tensioning the scale tape.
If your unit is giving trouble, Automation and Metrology can evaluate it before you commit to a replacement. Send the model and nameplate details so we can confirm the configuration.
Machine down? Call 1-888-354-2525.
Technical data
| Measuring standard | Steel tape scale with AURODUR grating |
|---|---|
| Grating period | 100 µm |
| Recommended measuring step | 1 µm |
| Accuracy grade | ±5 µm |
| Machine error compensation | Adjustable, max. ±100 µm/m (±100 ppm) |
| Reference marks | Every 50 mm (selector magnets) |
| Measuring lengths | Assembly kit with single-length AURODUR scale tape for 140 mm to 30 m. Single-length scale tape carrier (aluminum): 140, 240, 340, 440, 540, 640, 740, 840, 940, 1040, 1140, 1240, 1340, 1440, 1540, 1640, 1740, 1840, 1940 or 2040 mm. Larger lengths by butting scale tape carrier sections. |
| Maximum traversing speed | Depends on subsequent electronics |
| Maximum vibration (50 to 2000 Hz) | 100 m/s² |
| Maximum shock (11 ms) | 500 m/s² |
| Operating temperature | 0 to 50 °C |
| Storage temperature | -20 to 70 °C |
| Weight | Scanning head 50 g; selector magnet 10 g; scale 100 g + 250 g/m of measuring length |
| Connecting cable | 3 m with connector (standard); 0.3 m with connector on mounting block (special type); 1 m without connector (special type) |
| Light source | LED |
| Operating voltage | 5 V ±5% (miniature lamp and switching circuit for reference mark selection) |
| Catalog current draw | 140 mA |
| Incremental output | Two sinusoidal current signals I1 and I2, approximately 7 to 16 µA peak-to-peak with 1 kΩ load |
| Reference signal | One signal I0, approximately 2 to 8 µA (usable portion) |
| Total permissible cable length | 20 m |
These are historical catalog values, not a current availability or interchangeability claim. Match the exact model and configuration on your unit.
Pricing and lead times on request. Use Add to Quote and include the nameplate ID and configuration.
Documents
HEIDENHAIN LIDA 225 catalog specifications with AMI stamp, November 1988, pp.42-43 (PDF)
