HEIDENHAIN LIP 6000 Dplus Multi-Axis Incremental Linear Encoders

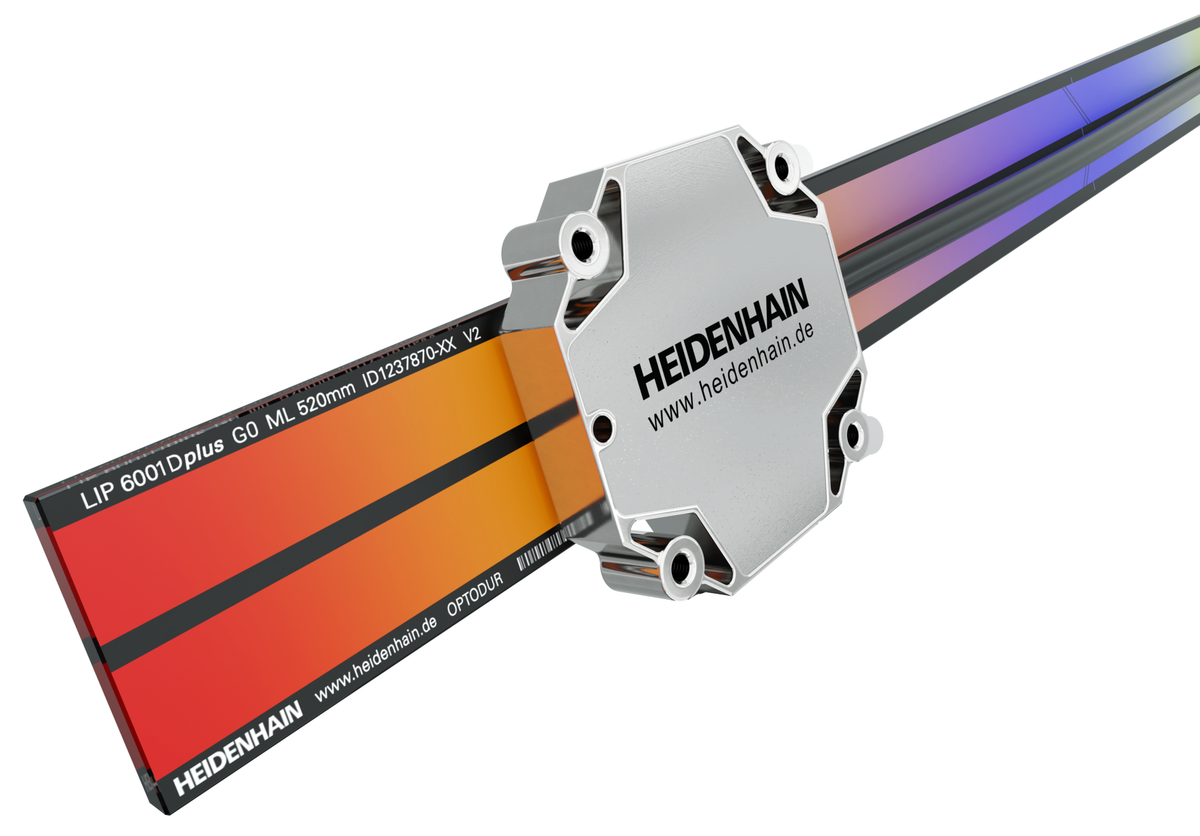

The HEIDENHAIN LIP 6000 Dplus series is an exposed incremental linear encoder with two diagonal graduation tracks at ±45°. It measures primary-axis motion and orthogonal secondary-axis motion on one scale. The LIP 6031 Dplus uses EnDat 3 to transmit two position values over a single cable; the LIP 6081 Dplus is the 1 VPP variant.

Scale and common technical data

• Scale: LIP 6001 Dplus; OPTODUR phase grating on Zerodur glass ceramic; 8 µm graduation period
• Primary-axis measuring length: selected lengths from 70 mm to 3040 mm
• Secondary-axis measuring travel: ±2 mm
• Accuracy grades: X direction ±3 µm; Y direction ±20 µm
• Baseline error: X direction ±0.175 µm per 5 mm; Y direction ±0.350 µm per 5 mm
• Reference mark: 68 mm from the beginning of the measuring length; at the midpoint for lengths up to 120 mm
• Traversing speed: up to 240 m/min; maximum 120 m/min when crossing the reference mark
• Interpolation error: ±5 nm
• RMS position noise: 0.5 nm at 1 MHz
• Operating temperature: -10 °C to 70 °C

LIP 6031 Dplus: EnDat 3

• Scanning head: AK LIP 603 Dplus; ordering designation E30-R4
• Measuring step: 172 pm
• Position-value availability, without cable influence: X less than 11 µs at 12.5 Mbit/s or 8.2 µs at 25 Mbit/s; Y less than 18.7 µs at 12.5 Mbit/s or 12.1 µs at 25 Mbit/s, with transmission in the first LPF
• Connection: 0.5 m, 1 m or 3 m cable with interface electronics in the 15-pin D-sub male connector
• Maximum cable length: 100 m at 12.5 Mbit/s or 40 m at 25 Mbit/s; 3 m during signal adjustment with PWM 21
• Supply: 3.6 V to 14 V DC; 12 V recommended
• Typical current: 110 mA at 12 V, without load
• Scanning-head mass: 30 g

LIP 6081 Dplus: 1 VPP

• Scanning head: LIP 608 Dplus
• Signal period: 4 µm
• Cutoff frequency: at least 1 MHz (-3 dB)
• Connection: 0.5 m, 1 m or 3 m cable with interface electronics in the 15-pin D-sub male connector
• Maximum cable length: 20 m with the specified cable; 3 m during signal adjustment with PWM 21
• Supply: 5 V DC ±0.5 V
• Current: no more than 150 mA
• Scanning-head mass: approximately 5 g without cable

Multi-axis selection

A Dplus scanning head measures two degrees of freedom. A suitable two-head arrangement can also measure rotation about the Z axis. Confirm the scale length, scanning-head arrangement, mounting method, interface and downstream processing before selecting a configuration. This is an incremental system: reference marks establish the reference position during referencing; the encoder is not an absolute encoder that retains an initialized position through a power cycle.

Documents

LIP 6031 Dplus / LIP 6081 Dplus specifications and dimensions (February 2026 catalog extract)

MULTI-DOF measurement technology brochure (February 2026)
