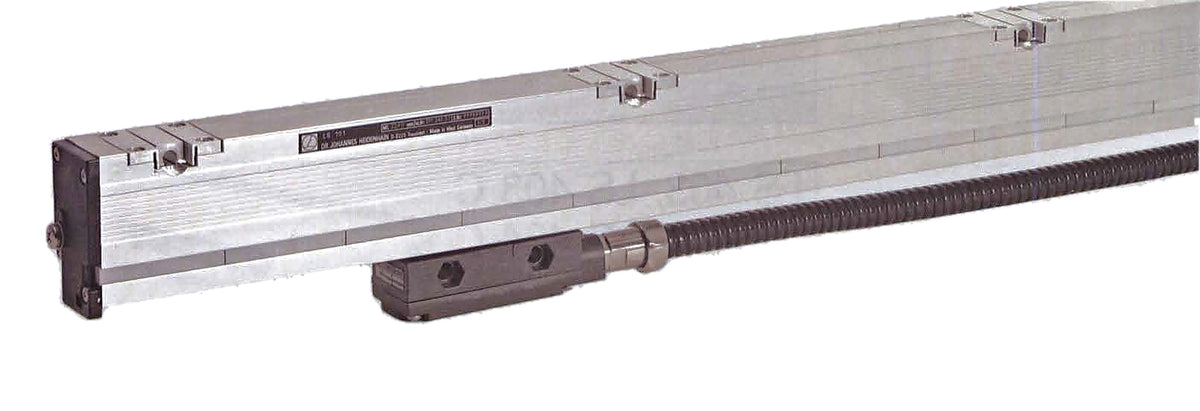

HEIDENHAIN LS 101 C Linear Encoder
It shows the catalog's example unit for this entry, not necessarily your exact configuration.
The HEIDENHAIN LS 101 C is a sealed linear encoder with DIADUR glass scale. If yours is giving trouble, Automation and Metrology can evaluate it before you commit to a replacement. We work on older equipment, including units that may no longer be available new.
we specialize in machine down encoder repair or replacement
How it works: Send us your unit for a free evaluation. We will give you a repair quote quickly, before work starts.
Turnaround: Rush repairs typically take 1-2 days; standard repairs typically take 1-2 weeks. We will confirm the timing for your unit with the quote. If repair is not practical, we can help identify a suitable current HEIDENHAIN replacement.
Expedited service: Expedited repair or replacement available on request; timing confirmed with your quote.
Catalog specifications
Current availability is not established. Confirm your unit's configuration from its ID tag.
- Measuring lengths 140 to 1240 mm. Grating period 10 µm. Accuracy ±5, ±3 or ±2 µm. Recommended measuring steps 1 / 0.5 / 0.2 / 0.1 µm.
- Reference marks: distance-coded.
- Traversing speed up to 30 m/min. Vibration 30 m/s², shock 200 m/s². Moving force under 4 N.
- Operating temperature 0 °C to 40 °C, storage –20 °C to 70 °C. Weight 1 kg + 2.6 kg/m. Cable 3 m with connector and armored sheathing.
Documents
- HEIDENHAIN LS 101 / LS 101 C spec sheet, 1988 catalog pp. 16-17 (PDF)
- HEIDENHAIN NC-Linear Encoders catalog, November 1988 (PDF)
Please send the full model and ID number from the unit's label, plus its measuring length and connector details, so we can check the right configuration. Do not assume a similar model is a drop-in replacement.
Request a Quote Or call 1-888-354-2525.
