HEIDENHAIN LS 1679 Linear Encoder | Configuration Inquiry

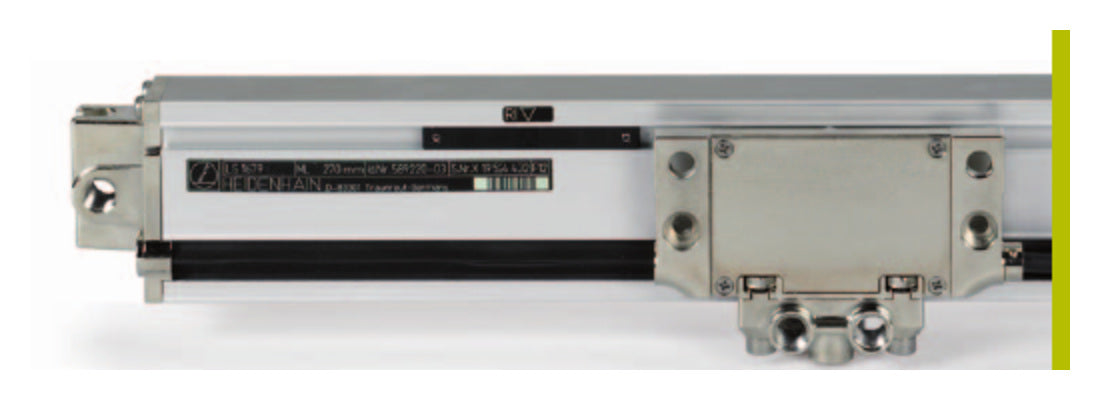

HEIDENHAIN's LS 1679 is a sealed incremental linear encoder with an integrated roller guide. This page is for configuration, repair, replacement, or sourcing inquiries. Availability and service options must be assessed for the exact unit; no stock or current-production claim is made.

• HEIDENHAIN's product information describes a DIADUR glass scale, TTL interface, nominal ±10 µm accuracy grade, and measuring steps of 5 µm or 1 µm after fourfold evaluation.
• Documented standard measuring lengths are 70 to 470 mm; longer lengths up to 2,270 mm were listed on request in the April 2016 product information.
• The integrated wear-free roller guide allows coupling by a rod or spring rod. Reference marks may be placed near an end of the measuring length or selected by magnet every 50 mm. Verify the exact cable, connector, length and mounting arrangement against the label and installation.

HEIDENHAIN LS 1679 product information (PDF, April 2016) includes specifications and mounting drawings. Historical details may differ from the configuration of your unit.

Request a quote or assessment with the LS 1679 part number, a label photo, measuring length, and the repair, replacement, or sourcing need. AMI will confirm what options can be offered.
