HEIDENHAIN ND 5023 Digital Readout

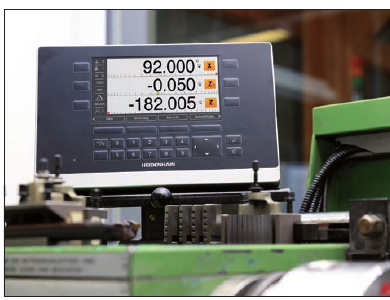

The HEIDENHAIN ND 5023 is a digital readout for manually operated milling, drilling and boring machines, and lathes with up to three axes. Its seven-inch color display, splash-proof membrane keyboard and dynamic zoom mode help operators read position values on the shop floor.

Applications and compatibility: HEIDENHAIN's product information lists TTL encoder inputs and cites LS 328 C and LS 628 C linear encoders for a 5 µm measuring step. It supports reference-point acquisition, a tool table, distance-to-go positioning, hole patterns, tool-radius compensation and a USB interface for configuration transfer. Confirm your encoder signal and mounting before requesting a quote.

HEIDENHAIN ND 5023 product information (PDF)

Pricing and lead times on request. Add this item to your quote list and include your machine and encoder models.
