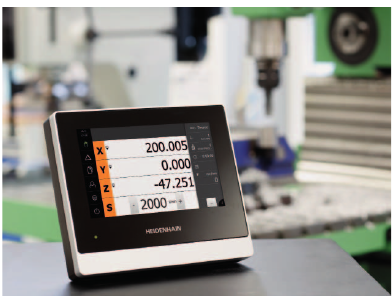

HEIDENHAIN ND 7013 Digital Readout

HEIDENHAIN ND 7013 Digital Readout

The HEIDENHAIN ND 7013 is a digital readout for manual milling, drilling and boring machines, and lathes with up to three axes. Its seven-inch touchscreen and aluminum housing are designed for workshop use.

Models: ND 7013 and ND 7013 I/O. The I/O version has switching inputs and outputs for simple machine interaction. Both accept 1 VPP and 11 µAPP encoder signals. Check the exact encoder interface, machine configuration and model suffix before requesting a quote.

Features include distance-to-go positioning, milling hole patterns, turning radius/diameter switching, and USB transfer of parameters and tables.

HEIDENHAIN ND 7013 product information, August 2018 (PDF)

HEIDENHAIN ND 7013 current catalog specifications, September 2023 (PDF)

Match the full ID and interface to your installed readout. The current catalog covers ND 7013 and ND 7013 I/O; the 2018 document remains available for earlier configurations.

Pricing and lead time on request. Add this readout to your quote list and tell us the model, encoder interface and machine type.
