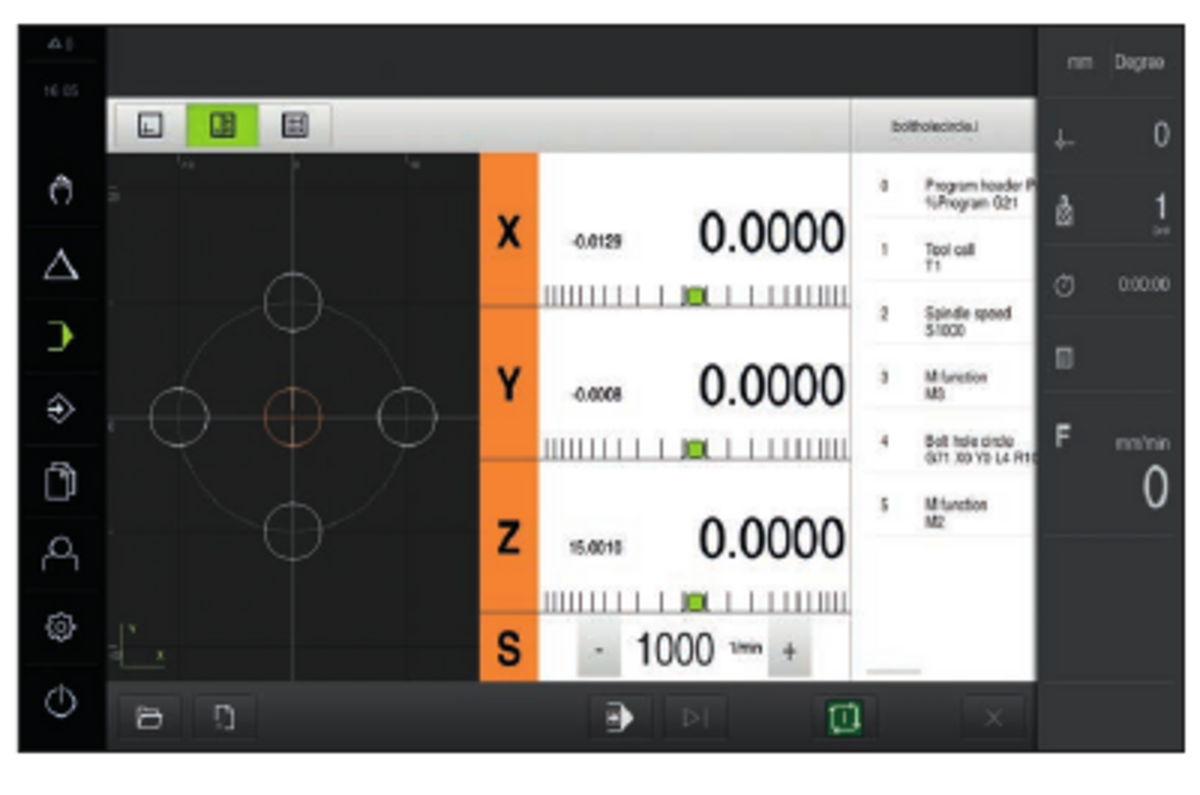

HEIDENHAIN POSITIP PT 8016 / PT 8016 Active Digital Readouts

The HEIDENHAIN POSITIP PT 8016 family is a digital readout for manual milling, drilling and boring machines and lathes. It supports four axes as standard, with two more available as an option. Its 12-inch touchscreen, positioning display, switching inputs and outputs, Ethernet and USB connections support shop-floor setup and measurement tasks.

Models covered: PT 8016 and PT 8016 Active. The Active model adds control of up to three NC axes and a spindle; it does not support simultaneous multi-axis motion or machine safety functions. Ask AMI to confirm the model, encoder interface and configuration for your machine.

HEIDENHAIN POSITIP PT 8016 product information, November 2018 (PDF)

HEIDENHAIN POSITIP 8016 / 8016 ACTIVE current catalog specifications, September 2023 (PDF)

Match the full ID and configuration to your installed readout. The 2018 product information remains available for earlier configurations.

Request a quote for the right configuration.
