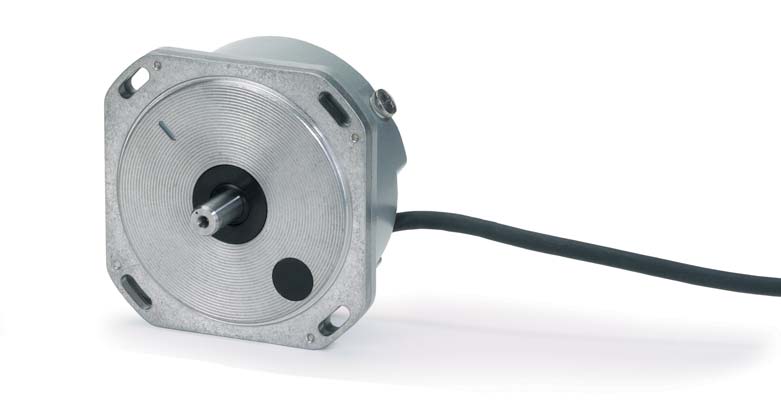

HEIDENHAIN ROD 250 Obsolete Angle Encoder | Replacement Inquiry
Obsolete / discontinued model. The HEIDENHAIN ROD 250 is a legacy incremental angle encoder. Ask AMI about repair, parts, or a suitable replacement for your exact unit; availability and compatibility must be confirmed before quoting. This page does not claim new ROD 250 stock.
ROD 250 technical reference
- Integral bearing and solid shaft for separate shaft coupling
- Manufacturer's 2005 document lists 9,000, 10,000, or 18,000 lines and system accuracy of ±5 arcseconds; confirm the full variant and ID number
- Approx. 11 µApp incremental signals; ROD 250 has one reference signal per revolution, while ROD 250 C has distance-coded reference marks
- 10 mm shaft and maximum mechanical speed of 10,000 rpm in the cited document
Send AMI the full HEIDENHAIN ID number, line count, connector and cable details, and a photo of the machine label. Do not interchange with a newer ROD 200 model without confirming electrical and mechanical fit.
HEIDENHAIN ROD 250 technical document (German, December 2005)
