HEIDENHAIN ROD 260 Incremental Angle Encoder
The HEIDENHAIN ROD 260 is an incremental angle encoder with integral bearing, 18,000 lines and TTL output, for rotary axes and measuring shafts. Legacy model: it is not in HEIDENHAIN's April 2015 angle encoder catalog, which lists the ROD 220, ROD 270 and ROD 280 in the ROD 200 series. Ask AMI about repair, replacement or sourcing for your exact unit; availability and the right replacement path are confirmed before quoting. This page does not claim stock.
Machine down? Call 1-888-354-2525.
Own an ROD 260 that has failed? Ask about repair options.

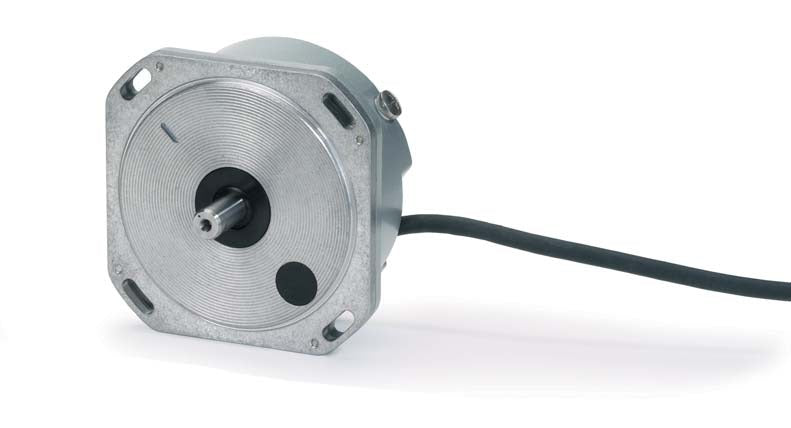

Representative ROD 200 series image.
Technical data
| Model | ROD 260 |
|---|---|
| Type | Incremental angle encoder with integral bearing and stator coupling |
| Signals | TTL |
| Line count | 18,000 |
| Reference mark | One |
| Output frequency | Up to 1 MHz (electrical speed 3333 rpm) |
| Measuring step | 0.005° |
| System accuracy | ±5 arc seconds |
| Power supply | 5 V ±10%, max. 150 mA without load |
| Electrical connection | Cable 1 m, with or without M23 coupling; max. cable length 100 m |
| Shaft | Solid shaft, D = 10 mm |
| Mechanical speed | Up to 10,000 rpm |
| Starting torque | Up to 0.01 Nm at 20 °C |
| Moment of inertia of rotor | 20 x 10-6 kgm2 |
| Permissible shaft load | Axial 10 N, radial 10 N |
| Vibration / shock | 100 m/s2 (55 to 2000 Hz) / 1000 m/s2 (6 ms) |
| Operating temperature | -10 to 70 °C (moving cable), -20 to 70 °C (rigid cable) |
| Protection | IP 64 |
| Weight | Approx. 0.7 kg |
Specifications from the manufacturer's July 2005 angle encoder catalog. Confirm the full ID number, interface and mounting dimensions from your encoder's nameplate before ordering; send the nameplate and we will confirm fit.
Catalog pages: RCN 200 series and ROD 260 dimensions and specifications (PDF, 4 pages).
