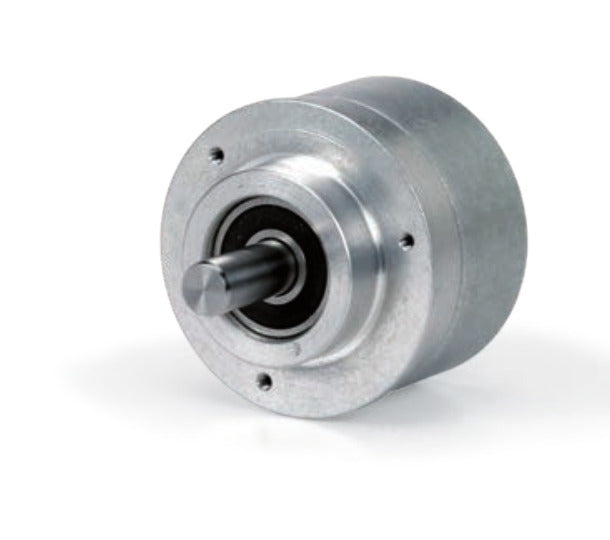

HEIDENHAIN ROD 420 / ROD 430 / ROD 480 Rotary Encoders | Configuration Inquiry
Ask AMI about a HEIDENHAIN ROD 420, ROD 430, or ROD 480 rotary encoder for repair, replacement, or sourcing. Quote and configuration on request; availability and the exact replacement path must be confirmed for your application.
ROD 420 / ROD 430 / ROD 480 specifications
- Incremental rotary encoders in the ROD 400 series, with clamping
Catalog specifications
From the HEIDENHAIN Rotary Encoders catalog, October 2009. Values are catalog values; confirm your unit's configuration from its ID label.
- Catalog values for the ROD 420 / 430 / 480 clamping flange series. This is a configuration inquiry page: line count, supply and cable are options in the sheet, not the fixed spec of one unit.
- ROD 420: TTL, 5 V, 120 mA. ROD 430: HTL, 10 to 30 V, 150 mA. ROD 480: 1 VPP, 5 V, 120 mA. Line counts available: 50 to 5 000.
- Solid shaft D = 10 mm, max. speed 12 000 rpm, shaft load axial 10 N / radial 20 N, IP 67 at housing and IP 64 at shaft end, approx. 0.3 kg.
Documents
- HEIDENHAIN ROD 420 / 430 / 480 clamping flange spec sheet, 2009 catalog (PDF)
- HEIDENHAIN Rotary Encoders catalog, October 2009 (PDF)
