HEIDENHAIN RON 225 / 275 / 285 / 287 Angle Encoders | Quote

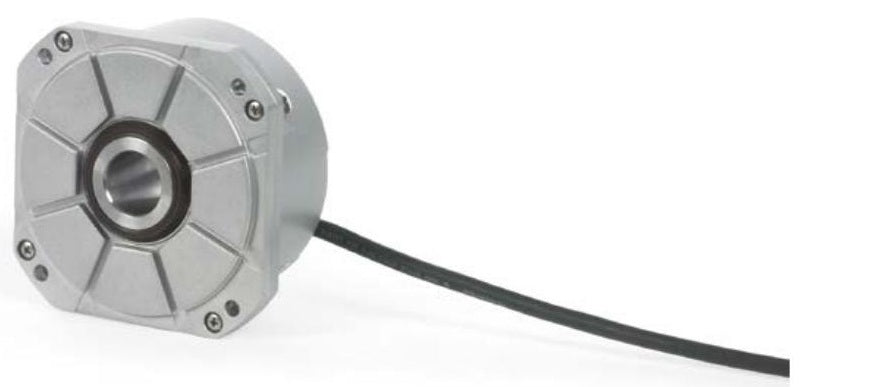

Representative HEIDENHAIN angle encoder image, not the exact ID

HEIDENHAIN RON 225 / 275 / 285 / 287 Angle Encoders | Quote

Ask AMI about a HEIDENHAIN RON 200 series angle encoder for repair, replacement, or sourcing. Quote and configuration on request; availability and the exact replacement path must be confirmed for your application.

Models covered

RON 225: incremental, 9,000-line measuring standard, TTL output with 2-fold interpolation, 18,000 output signals per revolution, one reference mark, ±5 arcsecond system accuracy.
RON 275: incremental, 18,000-line measuring standard, TTL output with 5-fold or 10-fold interpolation (90,000 or 180,000 output signals per revolution), one reference mark, ±5 arcsecond system accuracy.
RON 285: incremental, 18,000-line measuring standard, 1 VPP output, one reference mark (distance-coded on RON 285 C), ±5 arcsecond system accuracy.
RON 287: incremental, 18,000-line measuring standard, 1 VPP output, one reference mark (distance-coded on RON 287 C), ±2.5 arcsecond system accuracy.

Exact ID pages

The series uses an integrated stator coupling and a 20 mm hollow through shaft. Interface, reference mark, interpolation, connection, and mechanical fit must be matched to the installed encoder. Send the full part number or ID, a nameplate photo, and your application details when requesting a quote.

HEIDENHAIN angle encoders with integral bearing catalog, April 2015 (historical RON 225 / RON 200 reference)

Current RON 275 / RON 285 / RON 287 specifications

The February 2023 product information covers RON 275, RON 285, and RON 287. RON 225 is not included in that edition; retain the April 2015 catalog for its historical specifications. Match the complete ID, interface and mounting tolerances before selecting a replacement.

HEIDENHAIN RON 275 / RON 285 / RON 287 current product information, February 2023 (PDF)
