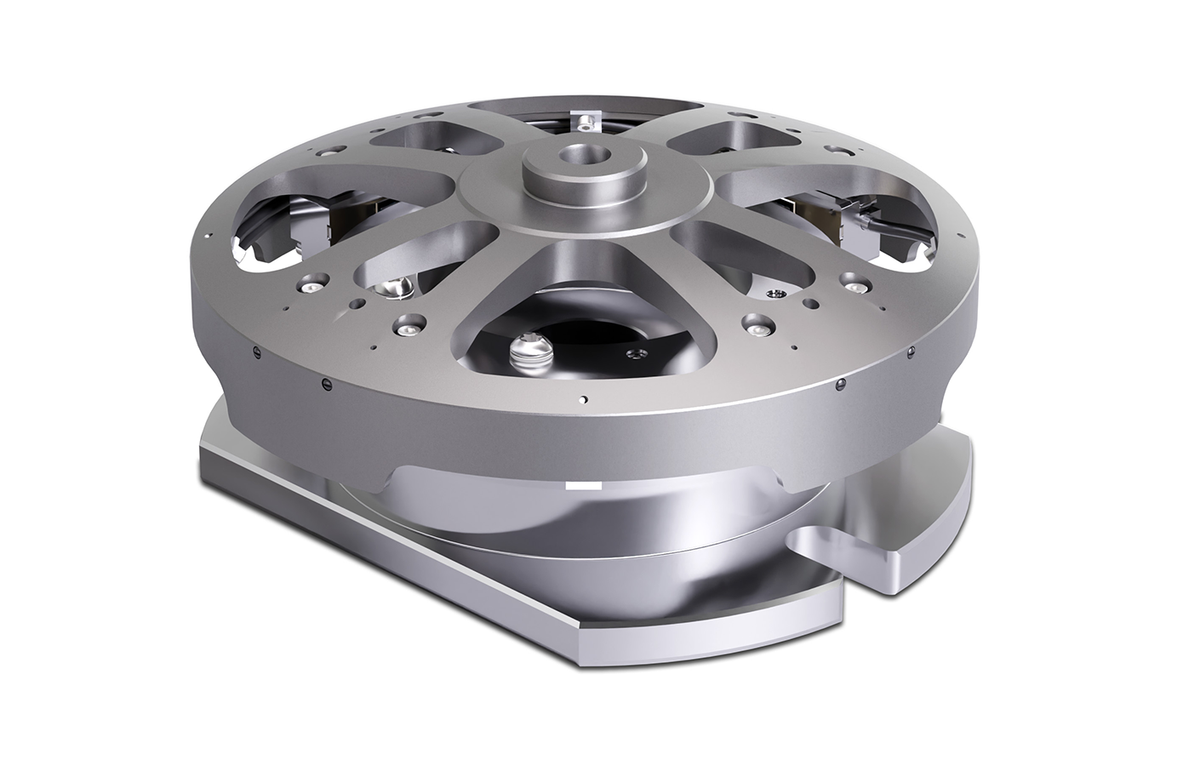

HEIDENHAIN RVM 4000 Rotary Axis Reference Encoders
The HEIDENHAIN RVM 4000 is a non-contact reference encoder for acceptance testing and inspection of machine-tool rotary axes. Its optical scale drum and scanning module measure rotary-axis motion for comparison with programmed positions. RVM 4180 is intended for rotary tables; the compact RVM 4280 is intended for swivel axes.
RVM 4000 is currently offered on a rental basis only. Contact us to discuss the inspection requirement and confirm a suitable route; this page does not promise rental availability or stock.
Technical Data
- Models: RVM 4180 for rotary tables; RVM 4280 for swivel axes
- Measuring standard: METALLUR graduation on a steel drum
- Grating period: 40 µm
- System accuracy: ±0.5 arcsecond for RVM 4180; ±1.0 arcsecond for RVM 4280, within the specified mounting and operating tolerances
- Possible measuring range: 360°, subject to the machine geometry
- Runout tolerance: ±0.2 mm
- Interface: 1 Vpp
- Measuring step: at least 0.03 arcsecond with EIB 74x
- Supply voltage: 5 V ±0.5 V
- Typical current: less than 100 mA per axis
- Connection: RVM 4180 has four 2.5 m cables; RVM 4280 has three 2.8 m cables, each with a 15-pin D-sub connector and locking screws
- Maximum cable length: 20 m with the specified cable
- Scanning-module holder: M30 × 0.5; tool-holder adapters are accessories
- Permissible speed: up to 100 rpm
- Operating temperature: 15 °C to 25 °C
- Mass: scanning module approximately 1.4 kg for RVM 4180 or 2.2 kg for RVM 4280; drum holder approximately 3.3 kg; total including case approximately 10.7 kg or 11.1 kg respectively
Inspection setup
The encoder operates with an EIB 74x interface box and a PC with suitable evaluation software. The setup can support acceptance testing and evaluation in accordance with ISO 230-2, ISO 230-3 and VDI/DGQ 3441. Mounting tools, tool-holder adapters, cables, interface electronics and software must be matched to the machine and inspection task. This page covers the RVM 4000 hardware, not a separate software offering.
Measurement outside the rotary-axis center can be possible with a suitable setup, but errors from associated linear axes may influence the result. The operator must interpret the overall measurement. The machine geometry can also limit the measuring range.
Documents
RVM 4000 and ACCOM 4.0 product information, May 2023 (PDF)
Include the rotary-axis type, machine details and inspection requirements so we can help identify the appropriate setup.
