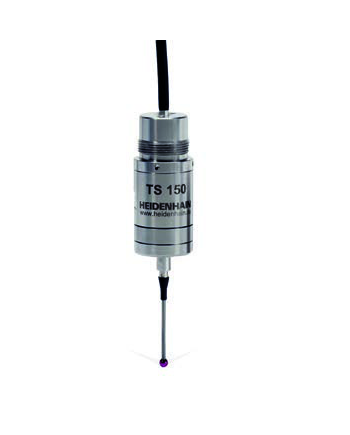

HEIDENHAIN TS 150 Compact Workpiece Touch Probe

HEIDENHAIN TS 150 Compact Workpiece Touch Probe

The HEIDENHAIN TS 150 is a compact, cable-connected workpiece touch probe for grinding machines and lathes. It measures workpiece position and dimensions through a mounting base and UTI 150 interface. Request a quote with the probe ID, machine, control and mounting details.

Technical Data

  • Probe accuracy: ≤ ±5 µm with the T404 standard stylus at 1000 mm/min
  • Probing repeatability: 2 σ ≤ 1 µm for repeated probing from one direction; typical 2 σ ≤ 0.5 µm
  • Signal transmission: cable
  • Interface: HTL via UTI 150
  • Recommended probing speed: ≤ 3 m/min
  • Protection: IP68 when connected
  • Operating temperature: 5 °C to 54 °C
  • Storage temperature: -20 °C to 70 °C
  • Supply via UTI 150: DC 10 V to 30 V, ≤ 85 mA without load
  • Electrical connection: two-pole sliding contact on the mounting base
  • Cable length: ≤ 25 m
  • Deflection: ≤ 5 mm in all directions with a 40 mm stylus
  • Mass without taper shank: approximately 0.1 kg

Mounting and configuration

Mounting bases are available with an M22x1 thread, three M3 screws or four M3 screws, each with an axial cable outlet. An optional touch-probe extension uses an M16x1 thread. Select the mounting base, stylus, cable and UTI 150 interface to suit the machine.

The trigger output and its inverted signal are square-wave signals. A floating trigger output is also provided. Match the complete interface and machine connection before choosing a replacement.

Documents

Touch probes catalog (PDF; TS 150 dimensions and specifications on pages 24-25)

Machine down? Ask about expedited repair or replacement options. Include the probe ID, machine model and mounting-base details so we can help identify the correct configuration.
