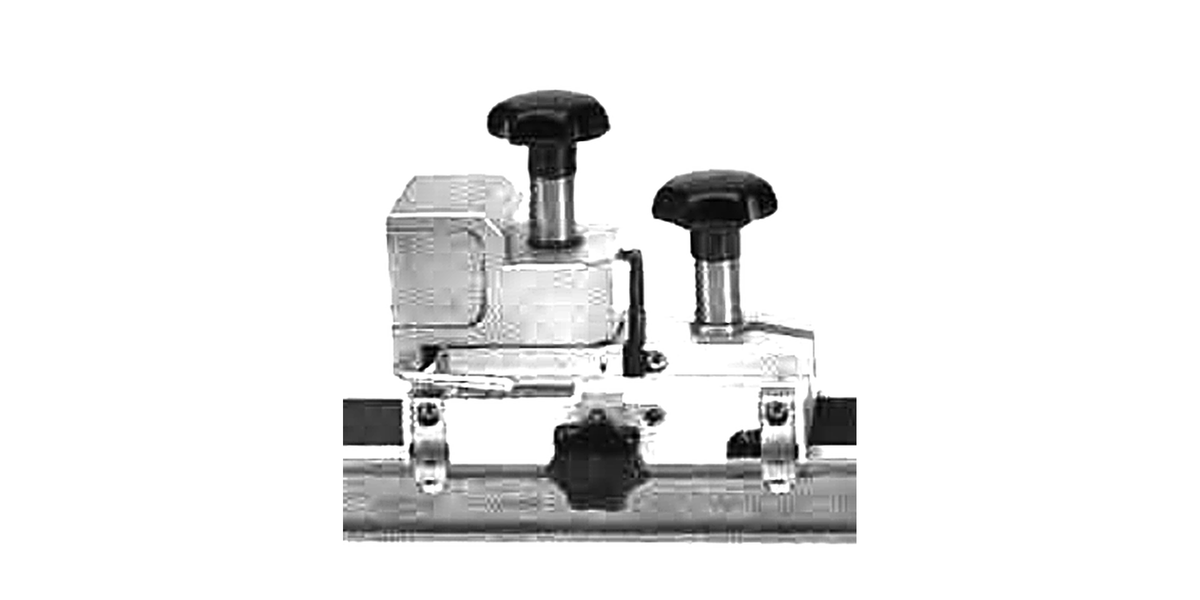

HEIDENHAIN VM 101 Incremental Comparator System
Legacy catalog product. Confirm repair, replacement and availability with AMI for your exact unit.
Confirm the configuration from your unit label.
The HEIDENHAIN VM 101 is an exposed incremental linear encoder with very high measuring accuracy, used mainly as a reference measuring system for calibrating small machine tools. It also suits position-error checks on cross tables (for example PCB drilling machines) and testing equipment. The scanning unit runs along the scale without mechanical contact. The set consists of a stainless steel U-beam scale carrier with a precision phase-grating scale protected by a glass lamella, the scanning unit, an auxiliary carriage for set-up and the APE 101 interface electronics, which produces two sinusoidal output signals with a 4 µm signal period. Measuring steps as small as 0.02 µm are possible.
If your unit is giving trouble, Automation and Metrology can evaluate it before you commit to a replacement. Send the model and nameplate details so we can confirm the configuration.
Machine down? Call 1-888-354-2525.
Technical data
| Measuring standard | Phase grating without reference mark, scale grating period 8 µm |
|---|---|
| Signal period | 4 µm |
| Accuracy grade | ±1 µm (±0.00004 in.) |
| Measuring lengths | 420 / 520 / 1020 mm (16.5 / 20.5 / 40.1 in.) |
| Recommended measuring steps | 1 µm / 0.2 µm / 0.1 µm / 0.02 µm |
| Maximum traversing speed | Depends on subsequent electronics |
| Maximum vibration (50 to 2000 Hz) | 5 m/s² |
| Maximum shock (11 ms) | 10 m/s² |
| Operating temperature | 10 to 30 °C (50 to 86 °F) |
| Storage temperature | -20 to 50 °C (-4 to 122 °F) |
| Weight | Scanning unit approx. 1.2 kg (2.64 lb); scale approx. 6.5 kg/m (4.36 lb/ft); APE 101 interface electronics 0.3 kg (0.66 lb) |
| Connecting cable | 0.5 m (1.64 ft) between scanning unit and APE; flange socket (9-pole) on APE |
| Light source | LED |
| Supply voltage | 5 V ±5 % / 120 mA |
| Output signals | Two sinusoidal signals I1 and I2, approximately 7 to 16 µA peak-to-peak with 1 kΩ load |
| Total permissible cable length | 20 m (65.6 ft) |
These are historical catalog values, not a current availability or interchangeability claim. Match the exact model and configuration on your unit.
Pricing and lead times on request. Use Add to Quote and include the nameplate ID and configuration.
Documents
HEIDENHAIN VM 101 catalog specifications with AMI stamp, November 1988, pp.48-49 (PDF)
