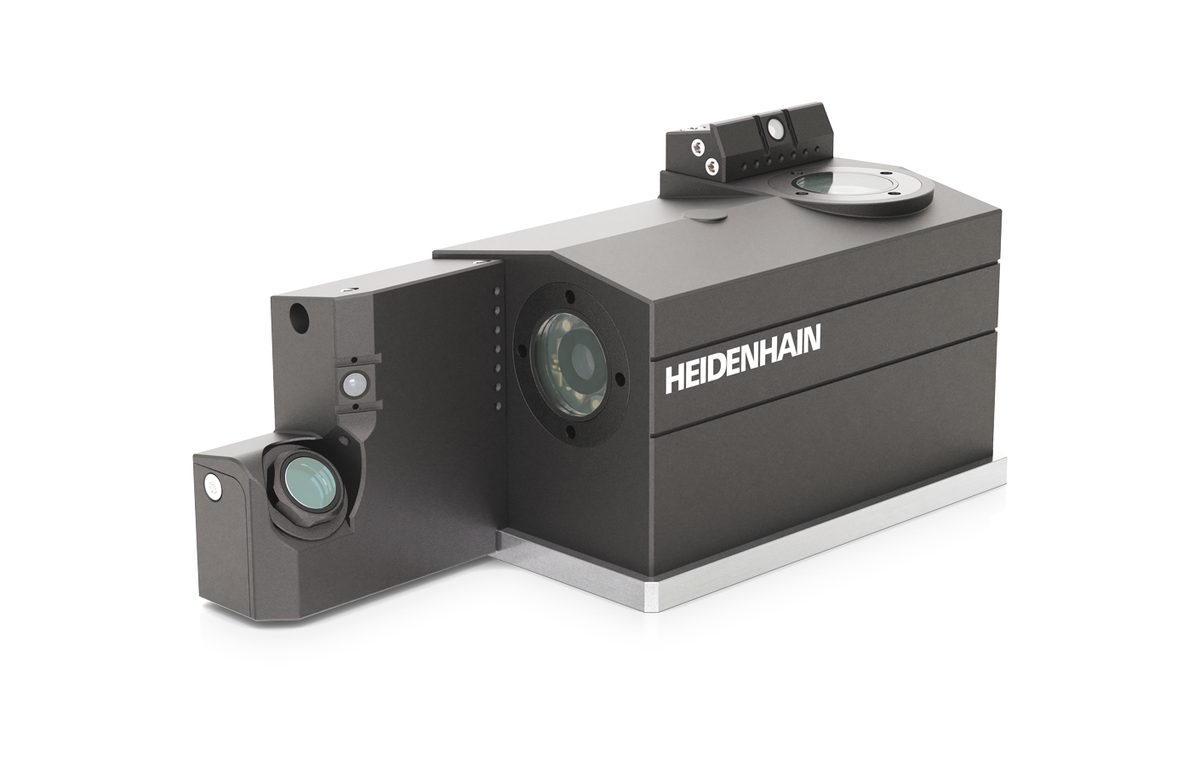

HEIDENHAIN VT 122 Tool Inspection and Measurement Camera System
The HEIDENHAIN VT 122 is a camera system for tool inspection and non-contact tool measurement inside a machine tool's work envelope. Two cameras image tools from the side and from below. An additional measuring LED on Camera 1 enables tool-length and tool-diameter measurement with the appropriate software and machine integration, while the tool remains clamped in the spindle.
Technical Data
- Model: VT 122
- ID number: 1373589-xx
- Cameras: two 1.3-megapixel monochrome cameras
- Lighting: ring light and lateral LED on each camera, adjustable through software; additional measuring LED on Camera 1
- Image size: 8 mm × 10 mm
- Operating distance: 52 mm for Camera 1; 20.5 mm for Camera 2
- Supply voltage: 19.2 V to 30 V, EN 61131-2
- Power connection: 12-pin A-coded M12 flange socket, male
- Camera interface: Gigabit Ethernet, CAT 6 or later
- Camera connection: 8-pin X-coded M12 flange socket, female
- Maximum cable length: 25 m with the specified cable
- Connection placement: on the rear or through the base plate, depending on the variant
- Protection: IP66/IP68 when connected
- Mass: approximately 1.00 kg
- Operating temperature: 0 °C to 45 °C
- Mounting: fixing clamps or four M6 screws on a 92 mm × 50 mm pattern, depending on the variant
- Cleaning: 8 mm compressed-air inlet for pulse cleaning of the tool and cover lenses; two 6 mm inlets are optional
Inspection and machine integration
The camera system operates with Visual Tool Check software and the appropriate machine-control cycles. Standard software functions include tool images from the side and below, close-up images of each flute, manual wear measurement and breakage control. Panoramic imaging and automated flank-wear measurement are options, not standard hardware features.
VT 122 supports visual inspection plus tool-length and tool-diameter measurement. Choose rear connections or base-plate connections for the machine's available mounting space. Software, control compatibility, mounting space, compressed air and installation requirements must be confirmed for the machine. This page covers the VT 122 camera hardware; it does not imply that software or control options are included.
Documents
VT 121 and VT 122 product information, September 2025 (PDF)
