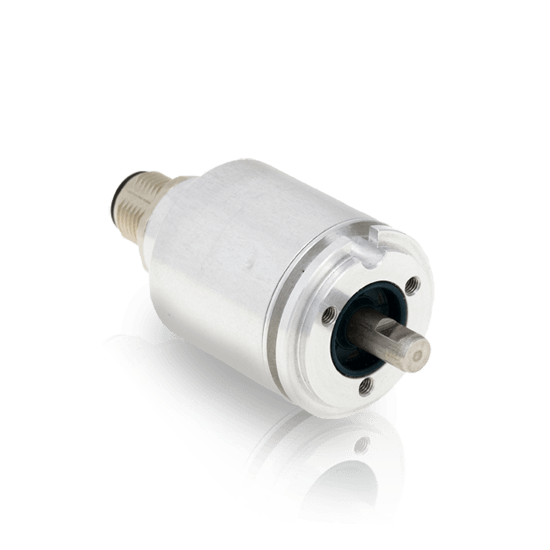

Leine & Linde 300 Series Miniature Incremental Encoder
  • Leine & Linde 300 Series Miniature Incremental Encoder
  • Leine & Linde 300 Series Miniature Incremental Encoder
Leine & Linde 300 Series Miniature Incremental Encoder

Leine & Linde 300 Series Miniature Incremental Encoder
  • 30 mm diameter miniature incremental encoder for installations where space is restricted
  • TTL and HTL incremental electrical interfaces
  • IP67 encapsulation with a shock and vibration resistant design for a long service life
  • Typical uses: mobile machinery and industrial high-pressure machines

300 Series Miniature Specifications

  • Diameter: 30 mm
  • Vibration: 300 m/s²
  • Shock: 5000 m/s²
  • Shaft load: 10 N radial
  • Encapsulation: IP67
  • Temperature: variants up to -40 .. +70 °C
  • Interfaces: TTL and HTL

Values vary by model, so send us the part number with Request a Quote to confirm exact specifications.

AMI is an authorized Leine & Linde distributor. Pricing and lead times on request. Use Request a Quote and include the model, shaft and interface you need.
