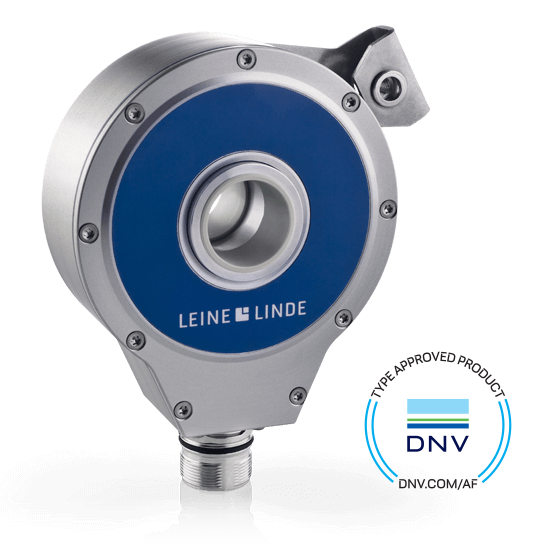

Leine & Linde 700 Series Compact Incremental Encoder
  • Leine & Linde 700 Series Compact Incremental Encoder
  • Leine & Linde 700 Series Compact Incremental Encoder
Leine & Linde 700 Series Compact Incremental Encoder

Leine & Linde 700 Series Compact Incremental Encoder
  • Compact incremental encoder engineered for tight spaces and tough conditions
  • DNV Marine Type Approved variant for marine and offshore installations
  • Shaft isolation prevents bearing currents and extends service life
  • Salt spray tested for corrosive environments; multiple electrical interfaces and modular configuration
  • Typical uses: propulsion and steering systems, thrusters and stabilizers, winches and cranes, pumps and compressors

700 Series Compact Specifications

  • Diameter: 100 mm
  • Vibration: 200 m/s²
  • Shock: 1500 m/s²
  • Shaft load: 100 N radial, 50 N axial
  • Encapsulation: IP66 (IP67 available)
  • Temperature: variants up to -40 .. +100 °C

Values vary by model, so send us the part number with Request a Quote to confirm exact specifications.

AMI is an authorized Leine & Linde distributor. Pricing and lead times on request. Use Request a Quote and include the model, shaft and interface you need.
