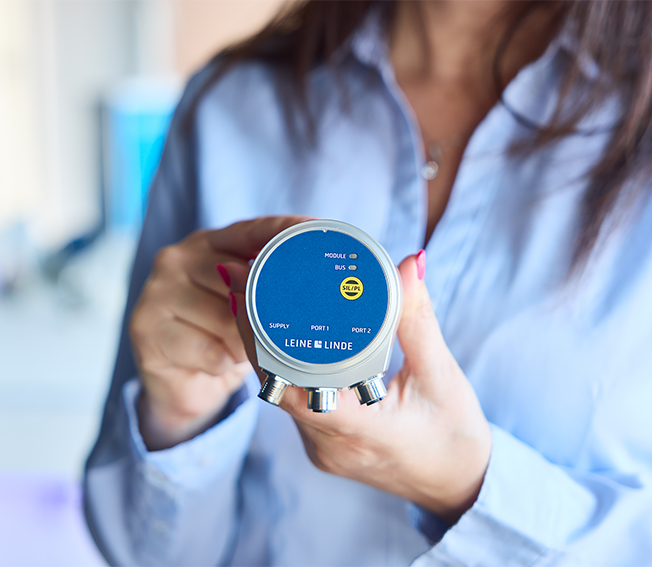

Leine & Linde FSI Functional Safety Encoders
- Functional Safety Integrated (FSI) encoders designed and certified for safety-critical applications
- Compliant with the functional safety encoder standard IEC 61800-5-3; certified up to SIL3 / PLe
- Redundant scanning with multiple independent layers for reliable position and motion feedback
- Electrical isolation protects control electronics from surges, noise and faults
- Safe communication with PROFIsafe over PROFINET
- Range includes the FSI 608 safety encoder for automation, FSI 600 series absolute encoders, FSI 800 series heavy-duty incremental encoders, FSI 900 series premium absolute encoders, and 900 YAWMO for wind turbine yaw control
FSI Functional Safety Specifications
- Safety levels: up to SIL3 / PLe
- Resolution: up to 19-bit single-turn, 12-bit multi-turn (FSI 608)
- Communication: PROFIsafe over PROFINET
- Models: FSI 608, FSI 600 / 800 / 900 series, 900 YAWMO
Values vary by model, so send us the part number with Request a Quote to confirm exact specifications.
AMI is an authorized Leine & Linde distributor. Pricing and lead times on request. Use Request a Quote and include the model, shaft and interface you need.
