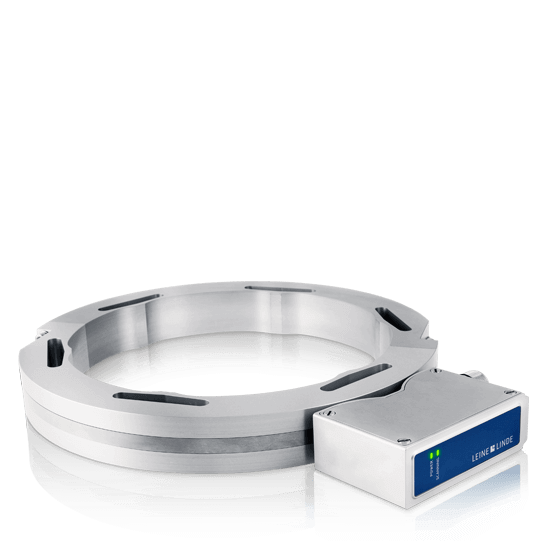

Leine & Linde MRI 2200/2300 Bearingless Ring Encoders

• Bearingless magnetic ring encoders with no contact surfaces, practically immune to mechanical wear
• Lightweight anodized aluminum construction, suited to salt water environments
• Segmented rings mount from two sides of the shaft for easy commissioning and retrofit
• Scanning gap tolerates thermal expansion and shaft runout
• Incremental interfaces including High-Current HTL for long-distance transmission

Mounting Options

• MRI 2200: flange-mounted ring; radial tolerance 0.1-3 mm, axial offset up to +/-4 mm (model 2202), extended scanning gap on model 2206
• MRI 2300: ClampFit mounting that tightens the ring directly onto any standard cylindrical shaft

Values vary by model and configuration, so send us the part number with Request a Quote to confirm exact specifications.

AMI is an authorized Leine & Linde distributor. Pricing and lead times on request. Use Request a Quote and include the model and shaft size you need.
