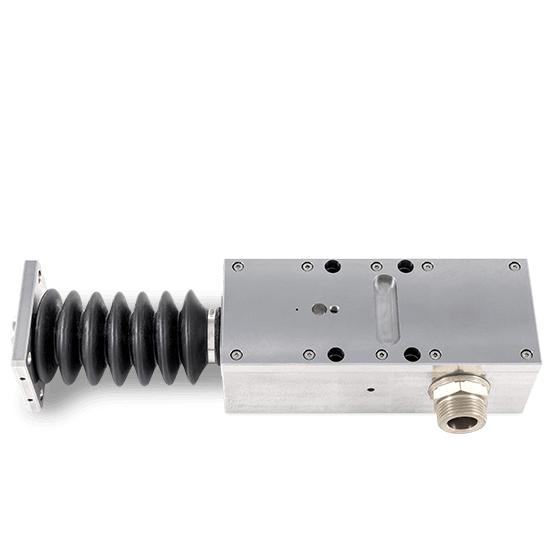

Leine & Linde RLI 4300 Incremental Linear Encoder

Incremental linear encoders in stainless steel (1.4104) for steel and metal industries
Developed with steel plants for robust, high-accuracy linear measurement in harsh environments and fast temperature shifts
System accuracy down to 3 um
Incremental signals transmittable over cable runs up to 150 m to the gateway
ERG gateway converts analog signals to digital incremental signals with LED, alarm and diagnostic functions, plus PROFIBUS connectivity for absolute positions and online configuration

Technical Data

Vibration: 500 m/s2; Shock: 500 m/s2
Encapsulation: IP67
Temperature: 0 to +70 C
Interfaces: 1 Vpp (fieldbus via gateway)

Values vary by model and measuring length, so send us the part number with Request a Quote to confirm exact specifications.

AMI is an authorized Leine & Linde distributor. Pricing and lead times on request. Use Request a Quote and include the model and measuring length you need.
