HEIDENHAIN ERA 700 / ERA 800 Series Scale-Tape Angle Encoders
The HEIDENHAIN ERA 700 and ERA 800 series are incremental modular angle encoders made of a scanning unit and a one-piece steel scale tape (up to 30 m), mounted on the inside diameter (ERA 700) or outside diameter (ERA 800) of a machine element. Full-circle and segment versions were available. Legacy series: they are no longer listed in HEIDENHAIN's current modular angle encoder catalog. Ask AMI about repair, replacement or sourcing for your exact unit; availability and the right replacement path are confirmed before quoting. This page does not claim stock.
Machine down? Call 1-888-354-2525.
Own an ERA 700 / 800 that has failed? Ask about repair options.

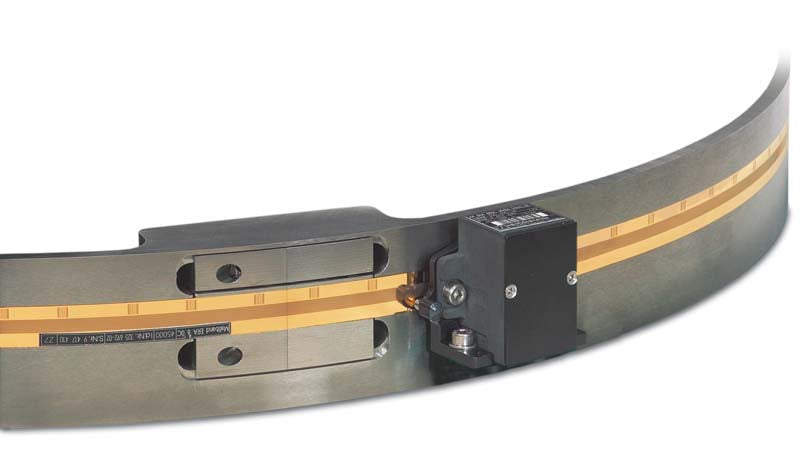

Representative ERA 800 series image.
Technical data
| ERA 780 C / ERA 880 C | Full-circle versions, inside (700) or outside (800) diameter; 36,000 to 90,000 lines |
|---|---|
| ERA 781 C / ERA 881 C / ERA 882 C | Segment versions, scale tape in a slot or on a segment of the machine element |
| Signals | 1 Vpp, distance-coded reference marks |
| Accuracy of the graduation | ±3 arc seconds |
| Mechanical speed | ERA 700: up to 500 rpm; ERA 800: up to 100 rpm |
| Protection | IP 00 |
Specifications from the manufacturer's July 2005 angle encoder catalog. Confirm the full ID number and scale-slot diameter from your encoder's nameplate; send the nameplate and we will confirm fit.
Catalog pages: ERO 785 and ERA 700 / ERA 800 series specifications (PDF, 8 pages).
Models: ERA 780 C, ERA 781 C, ERA 880 C, ERA 881 C, ERA 882 C, ERO 785.
